• Description

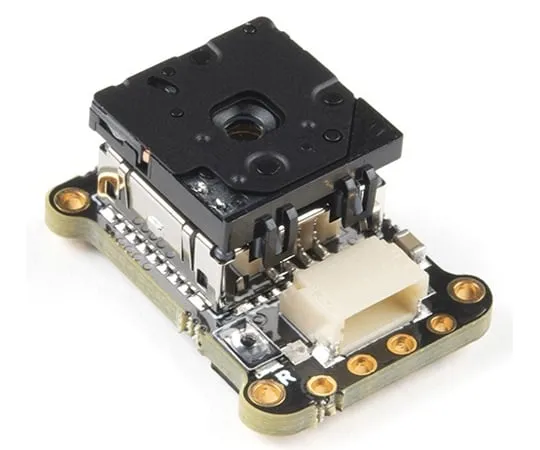

• The new PureThermal Mini Pro JST-SR with Thermal by FLIR is a hackable thermal camera for the FLIR Lepton thermal imaging camera core. Just like its PureThermal 2 predecessor, it ships pre-configured to operate as a plug-and-play UVC 1.0 USB thermal webcam that will work with standard webcam and video apps on all major platforms using a JST-SR to USB Cable, or your own custom cable. For developers, its reference firmware and viewer software are open source.
• It has multiple connection options such as solder straight to the board or a custom cable using the JST-SR port. The PTMini Pro also features four mounting holes, less complex circuitry, and perhaps best of all, USB DFU. This is a development kit ready to be embedded into a production system.
• Each board comes with a FLIR Lepton 3.5.
• The FLIR Lepton®is a radiometric-capable LWIR camera solution that is smaller than a dime, fits inside a smartphone, and is one tenth the cost of traditional IR cameras. Using focal plane arrays of either 160x120 or 80x60 active pixels, Lepton easily integrates into native mobile-devices and other electronics as an IR sensor or thermal imager. The radiometric Lepton captures accurate, calibrated, and noncontact temperature data in every pixel of each image.
• Features
• PureThermal:Compatible with all production FLIR Leptons, including radiometric 2.5 and 3.5 cores
• 9 Hz color video over usb using the USB UVC class
• STM32F412 ARM microprocessor - execute on-board image processing without need for an external system
• Open source reference firmware:GroupGets PureThermal Github
• Works with GetThermal - our custom open source thermal video display software for macOS and Linux with radiometric support
• DFU over USB using a JST-SR port to USB cable, or a modified USB cable and the through holes.
• Four mounting holes
• Compact form-factor ready to be embedded into production systems
• FLIR Lepton 3.5:Thermal sensitivity:< 50 mK(0.050°C)
• Spectral Range:8 - 14 microns(nominal)Long Wave Infrared(LWIR)
• Resolution:160h×120v pixels
• Radiometric Accuracy - High Gain Mode:Greater of +/- 5°C or 5%(typical); Low Gain Mode:Greater of +/- 10°C or 10%(typical)
• Scene Dynamic Range - High Gain Mode:-10° to +140°C; Low Gain Mode:-10° to +400°C(at room temperature), -10° to +450°C(typical)
• Pixel Size:12 micrometers
• Frame Rate:8.7 Hz(effective)
• Output Format:User-selectable 14-bit, 8-bit(AGC applied), or 24-bit RGB(AGC and colorization applied)
• Horizontal Field of View(HFOV):57°
• Lens Type:f/1.1
• Size(w×l×h):10.50×12.70×7.14 mm
• Weight:0.9 grams
• Power Consumption:150 mW typical, 650 mW during shutter event, 5mW standby
• Optimum Operating Temperature Range:-10°C to + 80°C
