Features

• Description
• Note - Please read before purchasing! :The MicroMod Asset Tracker ***s the "00B" product version of the SARA-R5 module(specifically the SARA-R510M8S-00B-00). LTE NB-IoT Radio Access Technology, and the LTE FDD bands:66, 71, 85 are not supported by this version. Refer to the SARA-R5 datasheet for more information.

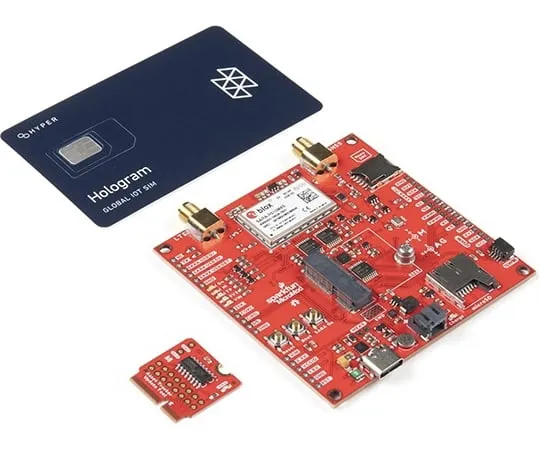

• The SparkFun MicroMod Asset Tracker Carrier Board provides you with a toolkit to monitor and track the location of your assets. Built around the u-blox SARA-R510M8S module, the asset tracker offers Secure Cloud LTE-M and NB-IoT data communication for multi-regional *** and has an integrated u-blox M8 GNSS receiver for accurate positioning information. The SARA-R5 supports many different forms of data communication from full TCP/IP sockets and packet switched data, through HTTP Get/Put/Post, FTP(the SARA has a built-in file system), Ping, to good old SMS text messaging!
• The Asset Tracker Carrier Board has an integrated ICM-20948 Inertial Measurement Unit(IMU)for Nine Degree-Of-Freedom orientation and movement detection. Want to s*** a message if your asset is moved? The Asset Tracker can do that! The board also has a built-in digital microphone and so can s*** an alert as soon as a noise is detected too.
• The SparkFun Asset Tracker Carrier Board has a built-in micro-SD card socket for data logging as well as a SIM card port and included SIM card. Power options include both USB-C and LiPo battery(with built-in charging and battery fuel gauge), but you can provide power via a breakout pin too.
• We've provided a full set of examples to get you up and running quickly and our SARA-R5 Arduino Library does all of the heavy lifting for you.
• The Asset Tracker will work with any of our MicroMod Processor Boards, but beca*** it offers so many features and can be configured in different ways, some Processor Boards may be a better choice for your application than others. Please see our Hookup Guide for further details.
• The u-blox SARA-R510M8S module provides Secure Cloud LTE-M and NB-IoT data communication for multi-regional ***. Please check that your service provider offers LTE-M/NB-IoT coverage for your area before purchasing.
• Get Started with the MicroMod Asset Tracker Carrier Board Guide
• Features
• u-blox SARA-R510M8S module providing Secure Cloud LTE-M data communication for multi-regional ***
• Please check that your service provider offers LTE-M coverage for your area before purchasing
• 1x MicroMod Update Tool included to communicate directly with the u-blox SARA-R510M8S module using u-blox's sophisticated m-center
• Integrated u-blox M8 GNSS receiver for accurate positioning information
• Nano SIM socket
• ICM-20948 Inertial Measurement Unit for 9-Degree Of Freedom orientation and movement detection
• "Wake On Motion" is supported
• The IMU is located in the center of the board for easy frame-of-reference
• Digital microphone(SPH0641)for noise detection
• micro-SD socket for data logging
• Can be powered by one of our rechargeable LiPo batteries
• Includes both a LiPo battery charger(MCP73831)
• and
• a battery fuel gauge(MAX17048)
• Separate, robust SMA connections for LTE and GNSS antennas
• Switchable 3.3V power for an active GNSS antenna
• USB-C connectivity
• Qwiic(I2C)connector
• LED indicators for:Power(VIN and 3.3V)
• SARA-R5 on
• Network indicator
• GNSS timing pulse(1PPS)
• 3.3V breakout pins for:SARA on
• Network indicator
• GNSS timing pulse(1PPS)
• I2C bus
• SPI bus
• D0, D1, A0, A1 PWM0, PWM1
• SARA I2C
• RTC backup battery
