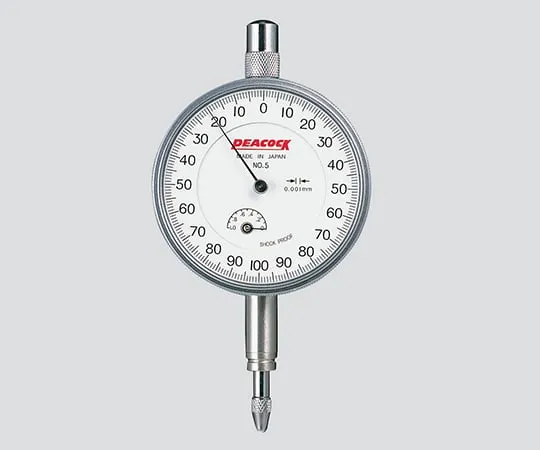

3-6086-03 Dial Gauge with Lug 5B
model:
3-6086-03
category:
dissectiontoolsandsupplies
Product Description
Product Model: 3-6086-03 Features Superior in waterproo […]
Contact Us
Product Details
Product Model: 3-6086-03
Features
- Superior in waterproof and impact resistant property.
Spec
- Model number: 5B
- Back cover specifications: with lug
- Measurement range (mm): 0 - 1
- Scale interval (mm): 0.001
- Indication based errors: ±5μm
- Return error: 3μm
- Material: Inner frame/zinc alloy, Outer frame/aluminum, Cover plate/meta acrylic acid resin, Upper stem cap/brass, Lower stem/carbon tool steel, Back cover/zinc alloy
- Dial size: φ53mm
- Weight (including case): Approx 190g
