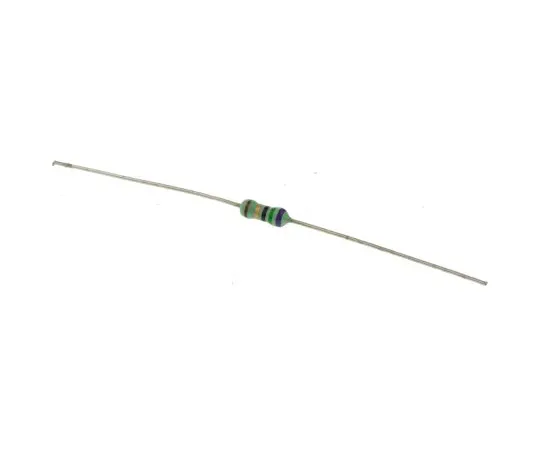

63-4570-14 Metal-coated Resistor LR1 series 75 ohms 0.6 W +/- 1% LR1F75R
model:
63-4570-14
brand:
TE Connectivity
Product Description
Product Model: 63-4570-14Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4570-14
Product Brand: TE Connectivity
Features
- This series of resistors is currently rated at 0.6 W (consumer standard) and 0.25 W (CECC MIL standard).
- Supports 3 case sizes: 0.6 W LR1F Series 10R -1 M0, Axial
- Metal Film Fixing Resistor, LR Series 1% tolerance and very high quality metal film resistors 0.25, 0.6 and 0.75 W for temperature coefficients up to a minimum of 50ppm.
- The LR1L series achieves a resistance value as low as 0.1 to 0.82 Ω.
- Ideal for environments where low resistance and small size are required
- Metal film resistors are highly loaded and provide excellent stability under harsh environmental conditions Very low noise current and voltage coefficient Suitable for a wide range of resistance values, ideal for general and precision applications
Spec
- Quantity: 1 bag (10 pieces)
- Resistance: 75 ohms
- Rated power: 0.6 W
- Tolerance: +/- 1%
- Technology: Metal coating
- Series: LR1
- Temperature factor: +/- 50 ppm/deg.
- End style: Axial
- Dimensions: 2.3 (Dia.) x 6.2 mm
- Length: 6.2 mm
- Diameter: 2.3 mm
- Minimum temperature coefficient: -50 ppm/deg.
- RoHS compliance status: Compliance
- Securities Code: 148 -225
