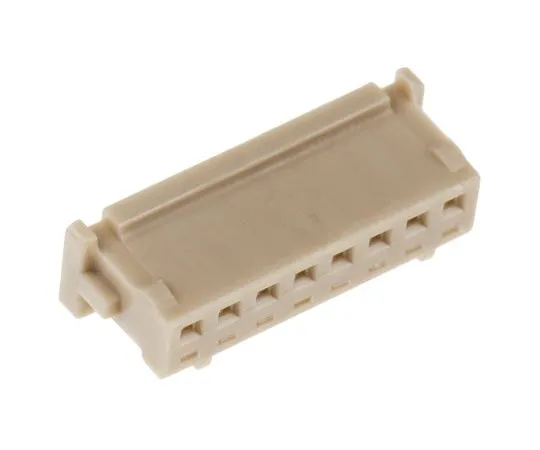

63-4569-51 Connector Housing Male 8 Pole 1 Row 1.25 mm DF13 Series 1 Bag (10 Pieces) DF13-8S-1.25C
Electronic/Electrical Parts and Controll Equipments

63-4569-51 Connector Housing Male 8 Pole 1 Row 1.25 mm DF13 Series 1 Bag (10 Pieces) DF13-8S-1.25C

model: 63-4569-51
brand: Hirose

Product Description

Product Model: 63-4569-51Product Brand: Hirose Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4569-51
Product Brand: Hirose

Features

  • Hirose Denki DF13 Series 1.25 mm Crimp Connector Housing
  • The DF13 Series 1.25 mm crimp connector housing is a miniature design and is available in 1 and 2 row configurations.
  • The compact two-row connector achieves 30% higher density in the same footprint than the single-row configuration.
  • The DF13 series connector housing has a polarization slot to prevent accidental insertion.
  • Friction locking mechanism allows the connector housing to be firmly connected to the header to be engaged.
  • The DF13 Series 1.25 mm connector housing engages the DF13 Series 1.25 mm board header connector.
  • The contacts for these crimping housings are sold separately. Representative part number; Refer to 503-8325 503-8325.
  • Features and Advantages: Compact, space-saving design Two-row configuration with 30% higher density than single-row configuration with the same mounting area Polarized slot to prevent erroneous insertion Friction lock mechanism to realize reliable mating connection
  • Applications: The DF13 Series 1.25 mm crimp connector housing is ideal for applications and portable devices that require both space saving and multiple signals. Its main applications include digital cameras, LDC displays, digital video recorders, car navigation systems, access control units, and measurement devices.

Spec

  • Quantity: 1 Bag (10 Pieces)
  • Number of contacts: 8
  • Number of rows: 1
  • Pitch: 1.25 mm
  • G***er: Male
  • installation types: Cable mount
  • Series: DF13
  • Compatible with: Miniature crimp connector
  • Body Orientation: Straight
  • Length: 11.65 mm
  • Width: 3.2 mm
  • Depth: 4 mm
  • Housing Material: Polyamide
  • RoHS Compliance Status: Compliance
  • Securities Code: 143-043
