Features

• Description

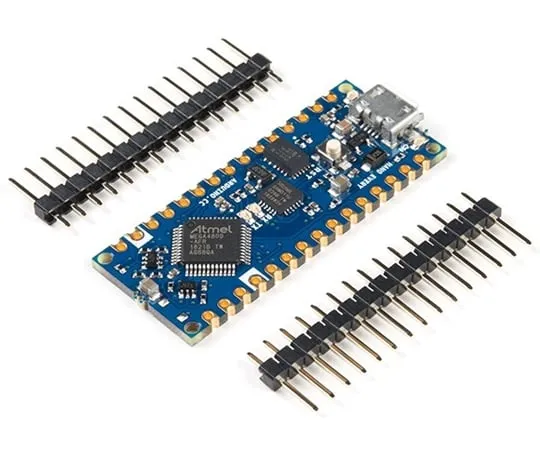

• Turn your ideas into a reality quickly with the new Arduino Nano Every
• This small, robust and powerful board has the same classic Nano footprint loved worldwide. It can be programmed with the easy to *** Arduino IDE available offline and online. Get started in minutes with thousands of sketches available in open-source or write your own:it is the perfect choice for your everyday projects. The size of Arduino Nano Every makes it ideal for wearable projects; in experiments, in prototypes or in a full cosplay setup! Sensors and motors can be connected without too much fuss which means it's great for robotics, drones and 3D printing, too.
• Based on the ATMega4809 AVR processor, the Arduino Nano Every is flexible to the requirements of your design. It can be ***d in a breadboard when mounting pin headers, or as a SMT directly soldered on a PCB thanks to its castellated pads. An SAMD11 ARM Cortex M0+ processor acts as a high performance USB to serial converter that can be re-programmed by skilled ***rs to expand further the applications of this board.
• Features
• Microcontroller:ATMega 4809
• Clock Speed:20MHz
• CPU Flash Memory:48KB
• SRAM:6KB
• EEPROM:256byte
• PWM Pins:5(D3, D5, D6, D9, D10)
• Operating Voltage:5V
• Input Voltage(limit)21V
• DC Current per I/O Pin:20mA
• DC Current for 3.3V Pin:50mA
• Analog Input Pins:8(ADC 10 bit)
• Analog Output Pins:Only through PWM(no DAC)
• 14 digital pins
• External Interupts:All digital pins
• Interfaces:1 UART, 1 SPI, 1 I2C
• LED_BUILTIN:13
• USB
• Domensions:45x25mm
• Officail Library Available
