67-0422-24 SparkFun Arduino ProtoShield - Bare PCB DEV-13819
suctioncupmask

67-0422-24 SparkFun Arduino ProtoShield - Bare PCB DEV-13819

model: 67-0422-24
brand: SparkFun
category: suctioncupmask

Product Description

Product Model: 67-0422-24Product Brand: SparkFun Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 67-0422-24
Product Brand: SparkFun

Features

  • Description

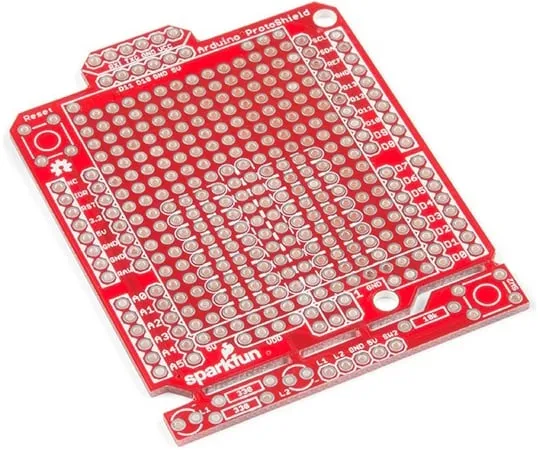

  • The SparkFun Arduino ProtoShield is a bare PCB with no attached or included parts that lets you customize your own Arduino shield using whatever circuit you can come up with! You will even be able to test your circuit or project to make sure everything is working the way it should! The SparkFun Arduino ProtoShield is based off the Arduino R3's footprint that allows you to easily incorporate it with favorite Arduino-based device.
  • Now you don't need to buy the whole ProtoShield kit if you just need a piece of prototyping board that will fit on top of your Arduino. You might want to grab a stackable header kit, though, which you can find in the related items below.
  • One of our favorite features with this version of the Arduino ProtoShield is the solderable-like breadboard prototyping area! Half of this area was designed with a breadboard in mind. On the underside of the shield you will be able to see open jumper pads between each through hole to make a connection like a breadboard. Once you add a component, simply add a solder jumper between holes to make a connection. For those that prefer the standard prototyping pads, we left the other side(near the BlueSMiRF and Serial UART ports)as is.
  • We have also moved the prototype testing components(those ***d to make sure your circuit works effectively)off of the "mainland" of the shield and onto a ProtoSnap styled, removable PCB. On this test area you will find soldering areas for two 3mm LEDs(as well as pins to control and power them), two 330 Ohm resistors, a 10K Ohm resistor, and a pushbutton. These items you'll need to purchase separately.
  • Need a custom board?
  • This component can be found in SparkFun's A La Carte board builder. You can have a custom design fabricated with this component - and your choice of hundreds of other sensors, actuators and wireless devices - delivered to you in just a few weeks.
  • Get Started With the SparkFun Arduino ProtoShield Guide
  • Features
  • Arduino R3 Footprint
  • Solderable-Like Breadboard
  • BlueSMiRF or Comparable 6-pin Pins
  • Detachable Test Area
  • Documents
  • Schematic
  • Eagle Files
  • Hookup and Assembly Guide
  • GitHub
