Features

• Description

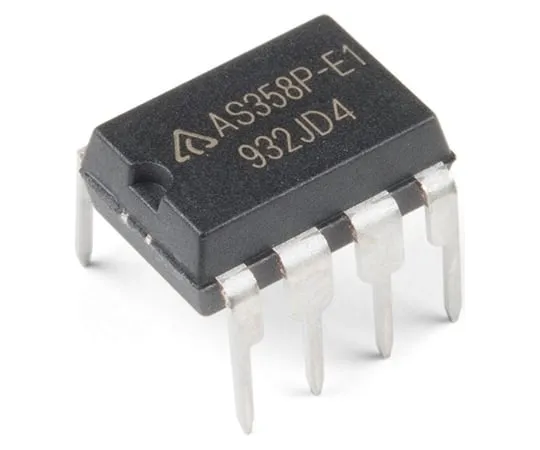

• The AS358P is a great, easy-to-*** dual-channel Op-amp. Op-amps have so many applications we figured we should probably carry at least one in a DIP package. AS358P applications include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits.
• If you're looking for a good, standard op-amp the AS358P should fill most of your needs. It can handle a supply of 3-36VDC and source up to 20mA per channel. This op-amp is great if you need to operate two individual op-amps from a single power supply. Comes in an 8-pin DIP package.
• Features
• Two internally compensated op-amps
• Internally frequency compensated for unity gain
• Large DC voltage gain:100 dB
• Wide bandwidth(unity gain):1 MHz(temperature compensated)
• Wide power supply range:
• Single supply:3V to 36V
• or dual supplies:+/-1.5V to +/-18V
