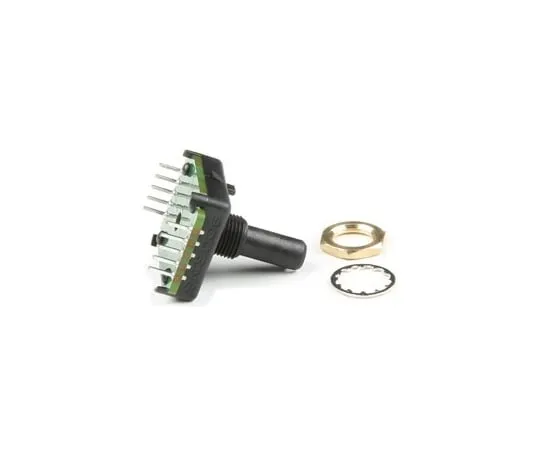

67-0421-27 Bourns Absolute Encoder (EAW0J-B24-AE0128L) COM-15036
Product Description
Product Model: 67-0421-27Product Brand: SparkFun Featur […]
Contact Us
Product Details
Product Model: 67-0421-27
Product Brand: SparkFun
Features
- Description
- The Bourns Absolute Encoder is a digital control knob that provides 128 unique results evenly spaced around a full circle. It is designed as a control panel knob but can be adapted for other ***s. This can be a good alternative to using a potentiometer and analog pin, as this allows for full-turn and multi-turn operation.
- It differs from the more common incremental rotary encoder which has only two or four values in a rotation and is designed to measure full rotations and direction. This measures
- angles
- and absolute position is maintained between power cycles.
- Features
- 128 rotary positions
- 360 degree continuous rotation
- Rotational life - 50,000 revolutions(min)
- Max RPM - up to 120
- Absolute digital output will retain its last position between power cycles or in the event of a power failure
- Threaded M9x0.75 in. bushing
- 3/4 in. rotating encoder shaft
- Rear mount terminals
