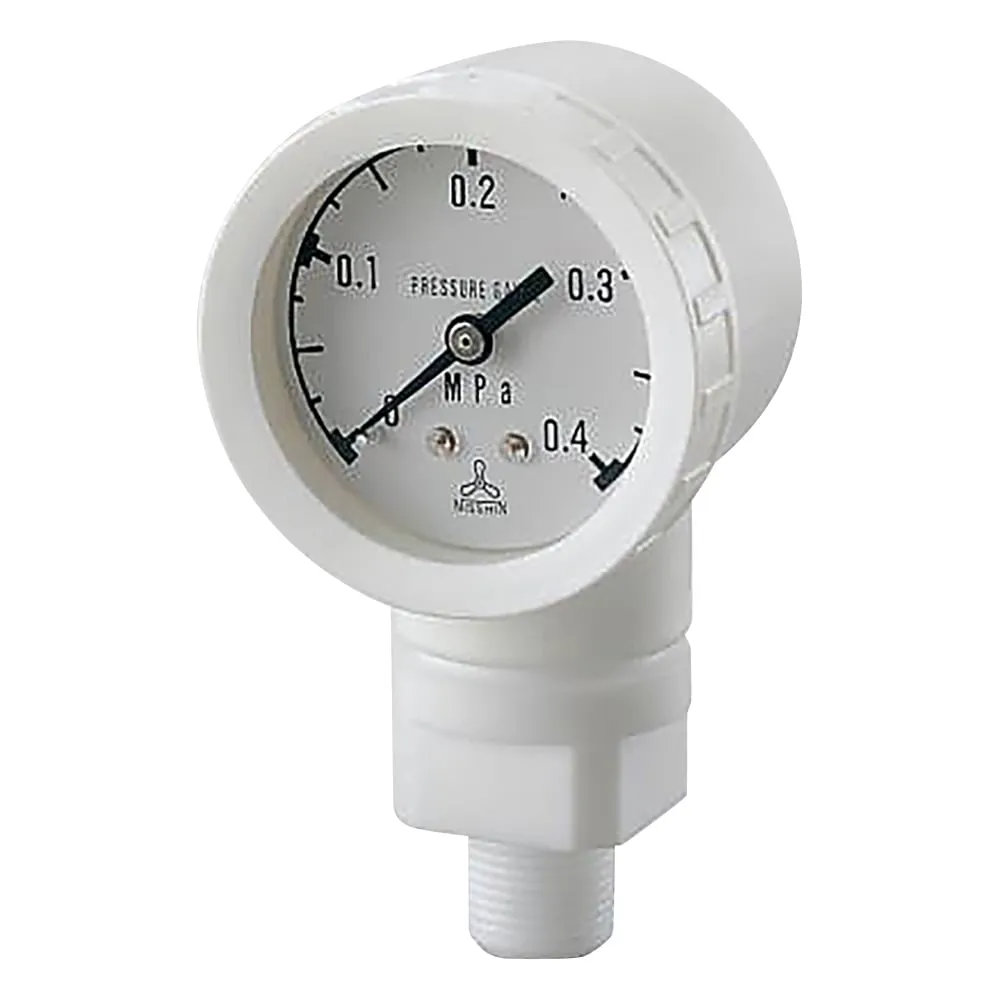

2-353-01 Pressure Indicator for High Corrosion Resistance Dl-B1-R3-0.4M DL-B1-R3-0.4M
model:
2-353-01
category:
toner
Product Description
Product Model: 2-353-01 Features Since all the welding […]
Contact Us
Product Details
Product Model: 2-353-01
Features
- Since all the welding parts are made of fluoropolymer, it can be ***d for most corrosive fluids and high-purity fluids.
- No oxide is generated.
- Since it is a sealed PP resin case, it can cope with adverse conditions.
Spec
- Material: Liquid junction/PTFE (fluororesin), Case, cover/PP (polypropylene), Transparent plate/PC (polycarbonate), Inner device/yellow copper
- Accuracy: 2%F.S..
- Operating temperature range: 5 - 40℃
- Assembly, test environment: Clean room class 10,000
- Pressure range (MPa): 0 - 0.4
- Connection section: R3/8
- *For *** under special flow and extreme conditions (low temperature and high temperature), you must have a test and check to select.
- Model number: DL-B1-R3-0.4M
