Electronic/Electrical Parts and Controll Equipments

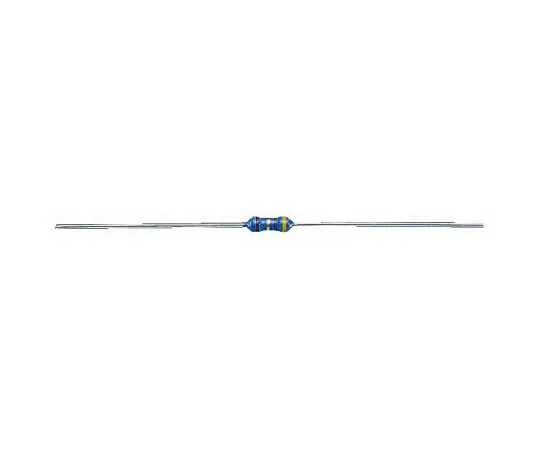

63-4567-40 Metal-coated Resistor LR1L series 150 momega 0.5 W +/- 5% LR1LJR15
model:
63-4567-40
brand:
TE Connectivity
Product Description
Product Model: 63-4567-40Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4567-40
Product Brand: TE Connectivity
Features
- The 0.5 W LR1L Series and the Axial LR Series are very high quality metal film resistors with a tolerance of 1% and a temperature coefficient of up to 50ppm
- 3 case sizes of 0.25, 0.6 and 0.75 W are supported.
- LR1L series achieves resistance values as low as 0.1 to 0.82 Ω Ideal for environments where low resistance and small size are required
- Metal film resistors are highly loaded and achieve excellent stability even under harsh environmental conditions Very low noise current and voltage coefficient Ideal for general and precision applications
Spec
- Quantity: 1 bag (10 pieces)
- Resistance: 150 m.OMEGA.
- Rated power: 0.5 W
- Tolerance: +/- 5%
- Technology: Metal coating
- Series: LR1L
- Case Style: Formal
- Temperature factor: +/- 200 ppm/deg.
- End style: Axial
- Dimensions: 2.3 (Dia.) x 6.2 mm
- Length: 6.2 mm
- Diameter: 2.3 mm
- Maximum operating temperature: + 155 deg.
- RoHS compliance status: Compliance
- Securities Code: 135 -493
