• Description

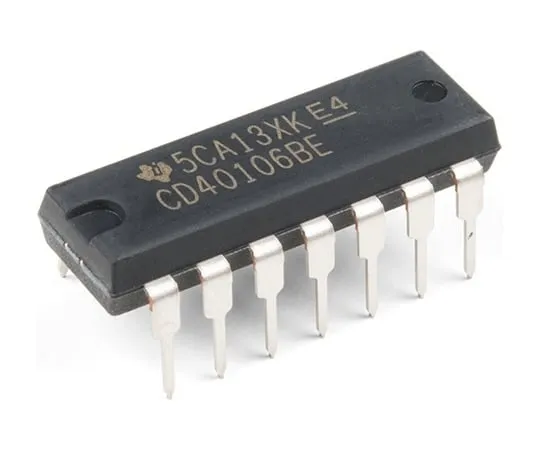

• The CD40106BE consists of six Schmitt-trigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage(VP)and the negative-going voltage(VN)is defined as hysteresis voltage(VH).
• Features
• Schmitt trigger action with no external components
• Hysteresis voltage typ. at 0.9V at VDD = 5V, 2.3V at VDD = 10V, and 3.5V at VDD = 15V
• Noise immunity greater than 50%
• No limit on input rise and fall times
• Standardised, symmetrical output characteristics
• 100% tested for quiescent current at 20sV
• Maximum input current of 1μA at 18 V over full package temperature range; 100nA at 18V and 25°C
• Low VDD to VSS current during slow input ramp
