Features

• Description

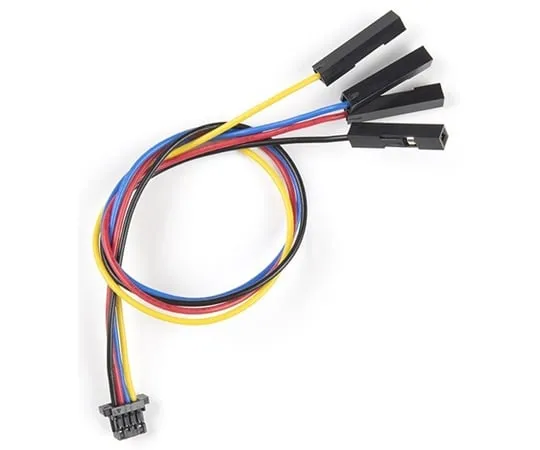

• This is a jumper adapter cable that comes pre-terminated with a female Qwiic JST connector on one *** and female connectors on the other. The cable insulation is made from a highly malleable material making it more flexible than our original Qwiic cable particularly in tight spaces or enclosures. This cable makes it easy to connect components with a Qwiic connector to the male pins on various development platforms. This cable is also a great way to attach a logic analyzer to your I2C system.
• The 28AWG wire's length is 150mm(about 5.9 inches). The adapter's wires have been color coded to red, black, blue and yellow. Additionally, the female Qwiic connector features a basic 1mm pitch, while the female hookup pins can easily connect to a standard 0.1" male connector.
• All Qwiic cables have the following color scheme and arrangement:
• Black = GND
• Red =
• 3.3V
• Blue =
• SDA
• Yellow =
• SCL
• The SparkFun Qwiic connect system is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards *** a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.
