63-8303-82 470kΩ Through Hole Trimmer Potentiometer 0.13W Top Adjust Vishay T7 Series T7YA474MT20
Product Description
Product Model: 63-8303-82Product Brand: Vishay 特徴 Cerme […]
Contact Us
Product Details
Product Model: 63-8303-82
Product Brand: Vishay
特徴
- Cermet T7YA Series. Industrial Grade CECC 41100 Low temperature coefficient and high stability Clear scale reading for ease of adjustment IP64 - sealed for dust and PC boards cleaning (not water)
仕様
- Quantity:1set(50pieces)
- Maximum Resistance:470kΩ
- Mounting Type:Through Hole
- Number of Turns:1
- Orientation:Top Adjust
- Power Rating:0.13W
- Series:T7
- Termination Style:Pin
- Tolerance:±10%
- Temperature Coefficient:±100ppm/°C
- Shaft Diameter:4 mm
- Diameter:7mm
- Minimum Operating Temperature:-55°C
- Maximum Operating Temperature:+125°C
- CODE No.:167-9371
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7819-50 PEEK Thermal Insulating Film, 200mm x 305mm x 0.1mm 764-8722
model: 63-7819-50
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-7664-39 LAG Fixed Castor Wheel, 120kg Load Capacity, 100mm Wheel Diameter 18865
model: 63-7664-39
brand: LAG
Electronic/Electrical Parts and Controll Equipments

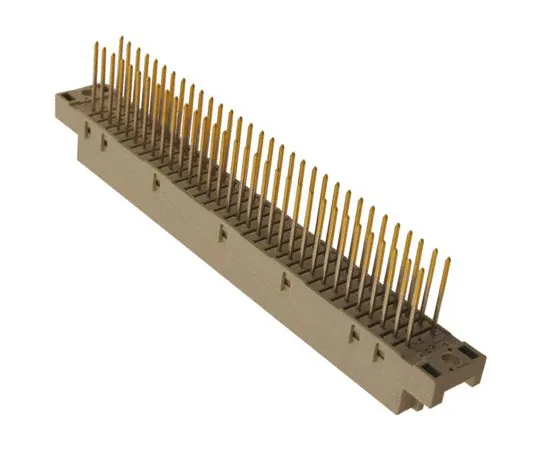

64-0470-56 Harting 09 03 Series 64 Way 2.54mm Pitch, Type C Class C2, 3 Row, Straight DIN 41612 Connector, Socket 09032646878
