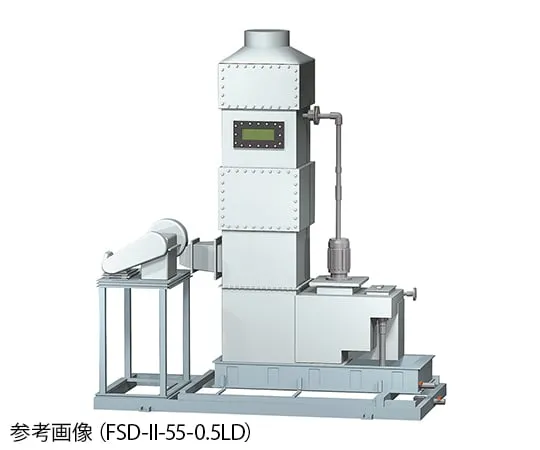

4-1149-01 Wet scrubber (with drain pan) FSD-II-55-0.5LD
model:
4-1149-01
category:
gasmonitors
Product Description
Product Model: 4-1149-01 Features The main body and exh […]
Contact Us
Product Details
Product Model: 4-1149-01
Features
- The main body and exhaust fan are made of molded FRP (fiber reinforced plastic) and are high corrosion resistance, high performance, and high quality.
- Compact design with cleaning building, exhaust fan and circulation pump set in common base.
- This type comes with a drain pan, which is required to be installed when using hazardous materials specified by the Water Pollution Control Law.
Spec
- processing air volume (m3/min): 10 to 35
- Size (mm): 2420 x 1200 x 2760
- Method: Wet scrubber made of FRP (fiber-reinforced plastic)
- System configuration: vertical scrubber (Integrated circulation tank type), exhaust fan, circulating pumps, common base
- material : Frame/Molded FRP Plastic , Filler/PP (Polypropylene) , DEMISTER/PVdC , Fan/Injection Molded FRPP (or molded FRP) , pumps/PVC (Plastic vinyl chloride ) , Common Base/SS 400 + Zn Plating , bolt nut/Stainless Steel (SUS304)
- Motor: Fully enclosed external fan, outdoor
- FRP color: Main unit/Munsell N -7, Fan/Munsell N -7 (moulded FRPP), 10 GY 6/2 (molded FRP)
- Suction capacity: Max 60 ° C
- Standard accessories: Water supply nozzle (20 A 10 K PVC), drain (40 A PVC), chemical anchor bolt, nut (SUS304)
- exhaust fan specification
- Type: 100 NKSII-RB
- Power (kW): 1.5
- Static pressure (Pa): 750
- Circulating pumps specification
- Model: 25 V03
- Water (L/min): 55
- Power (kW): 0.4
- lifting height (m): 8
- Circulation tank capacity (L): 240
- New water supply volume (L/min): 3
- External static pressure (Pa): 450
- Product mass (kg): 430
- Operation mass (kg): 1100
- *Operation mass is the maximum value (Drain pan full condition by rainwater).
- *Control switchboards are not included. Please contact us separately.
