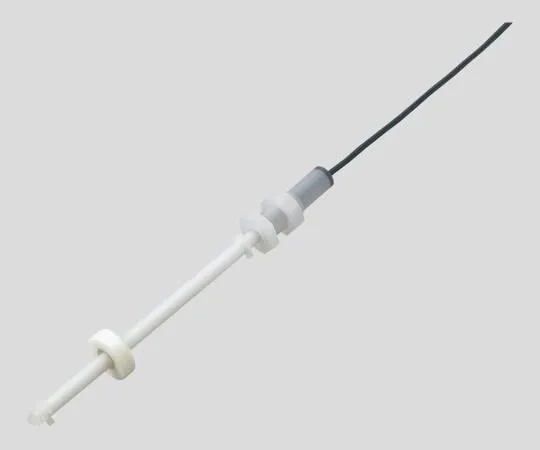

2-216-01 Continuous Float Sensor HL-AP-150A
model:
2-216-01
category:
toner
Product Description
Product Model: 2-216-01 Features Ideal for liquid level […]
Contact Us
Product Details
Product Model: 2-216-01
Features
- Ideal for liquid level condition monitoring.
- Liquid levels can be measured continuously at 5 mm intervals.
- Built-in temperature sensor allows easy measurement of liquid temperature.
Spec
- Output voltage: 1 - 5V (ladder voltage output)
- Standard detection liquid: Water
- Liquid level sensor: Resolution/5mm step, Accuracy/+/- 5mm
- Temperature sensor: Resolution/0.5℃, Accuracy/+/-3.5℃
- Operating temperature range: -20 - 80℃ (wetted part)
- Material: Stem, Float/PP (Polypropylene)
- Power supply: DC12 - 24V +/-10%
- Measurement length (mm): 150
- *For indicator, please contact with us separately.
- Model number: HL-AP-150
