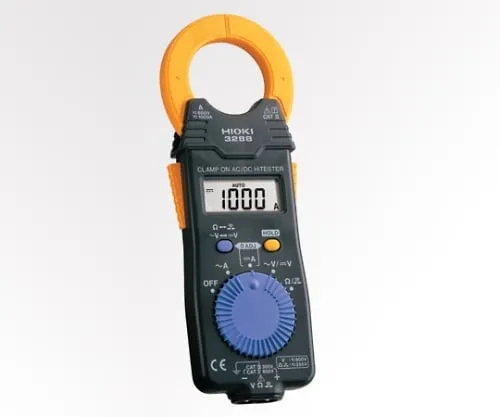

2-1516-01 Clamp-On AC/DC Hi-tester 3288
Product Description
Product Model: 2-1516-01Product Brand: HIOKI E. E. CORP […]
Contact Us
Product Details
Product Model: 2-1516-01
Product Brand: HIOKI E. E. CORPORATION
Spec
- Model number: 3288
- DC voltage: 419.9mV - 600V (5 ranges), basic accuracy: ±1.3%rdg. ±4dgt..
- DC current: 100.0/1000A, basic accuracy: ±1.5%rdg. ±5dgt..
- AC voltage: 4.199 - 600V (4 ranges), basic accuracy: ±2.3%rdg. ±8dgt. (30 - 500Hz; rectified average)
- AC current: 100.0/1000A (10Hz - 500Hz;rectified average), basic accuracy: ±1.5%rdg. ±5dgt..
- Resistance: 419.9Ω - 41.99MΩ (6 ranges), basic accuracy: ±2%rdg. ±4dgt..
- Other function: Buzzer goes off when conduction (50Ω ±40Ω) or less, data hold, auto power save, auto zero (DC A)
- Display: 4199 counts, LCD display
- Sampling: About 2.5 times/second
- Function: Data hold, auto power save, battery exhaustion alarm display
- Size: 57 x 16 x 180mm
- Weight: 150g
- Power supply: CR2032 button cell (DC3V) x 1 piece (included for test)
- With carrying case, test lead
- Maximum measurement conductor diameter: φ35mm
