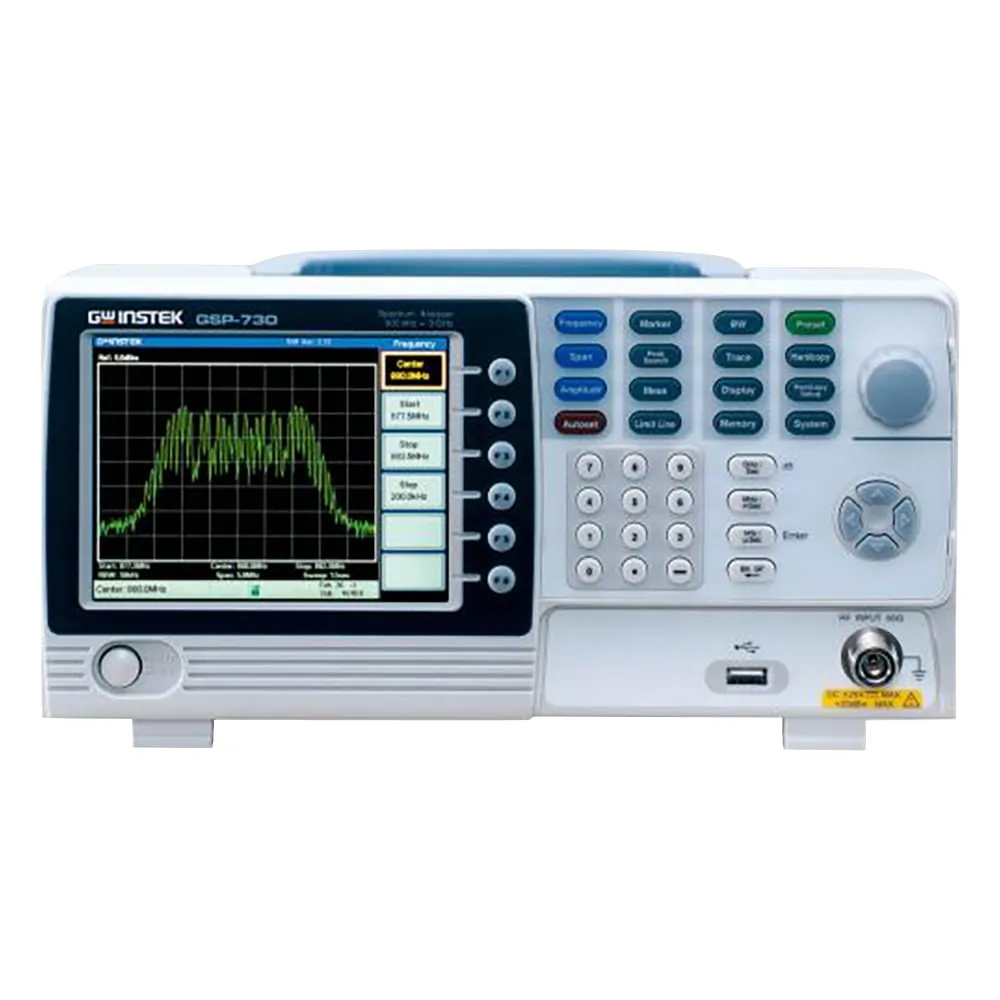

2-1442-11 Spectrum Analyzer GSP-730
Product Description
Product Model: 2-1442-11Product Brand: GW INSTEK (TEXIO […]
Contact Us
Product Details
Product Model: 2-1442-11
Product Brand: GW INSTEK (TEXIO TECHNOLOGY CORPORATION)
Features
- With marker measurement (5 markers, 5 peak markers) function.
- 3 You can display traces in different colors (Green, orange, yellow).
Spec
- Frequency accuracy: ±50kHz (Frequency span: 0.3GHz - 2.6GHz, 20 ±5℃)
- RBW range: 30kHz, 100kHz, 300kHz, 1MHz
- RBW accuracy: +/- 25%
- Span settings: 1MHz - 3GHz, Full span, Zero span
- Displayed average noise level: ≦ -100dBm (center frequency: 1GHz, RBW: 30kHz)
- Amplitude reference level setting range: +20 to -40dBm
- Power measurement items: ACPR, OCBW, CHANNEL POWER
- Amplitude accuracy: ±2dB (1GHz, Span 5MHz)
- Power supply: AC 100 - 240V, 50/60Hz
- Size: 296 x 115 x 152mm
- Weight: Approx 2.2kg
- Frequency characteristics: 150KHz - 3GHz
- Resolution (MHz): 0.1
- Model number: GSP-730
