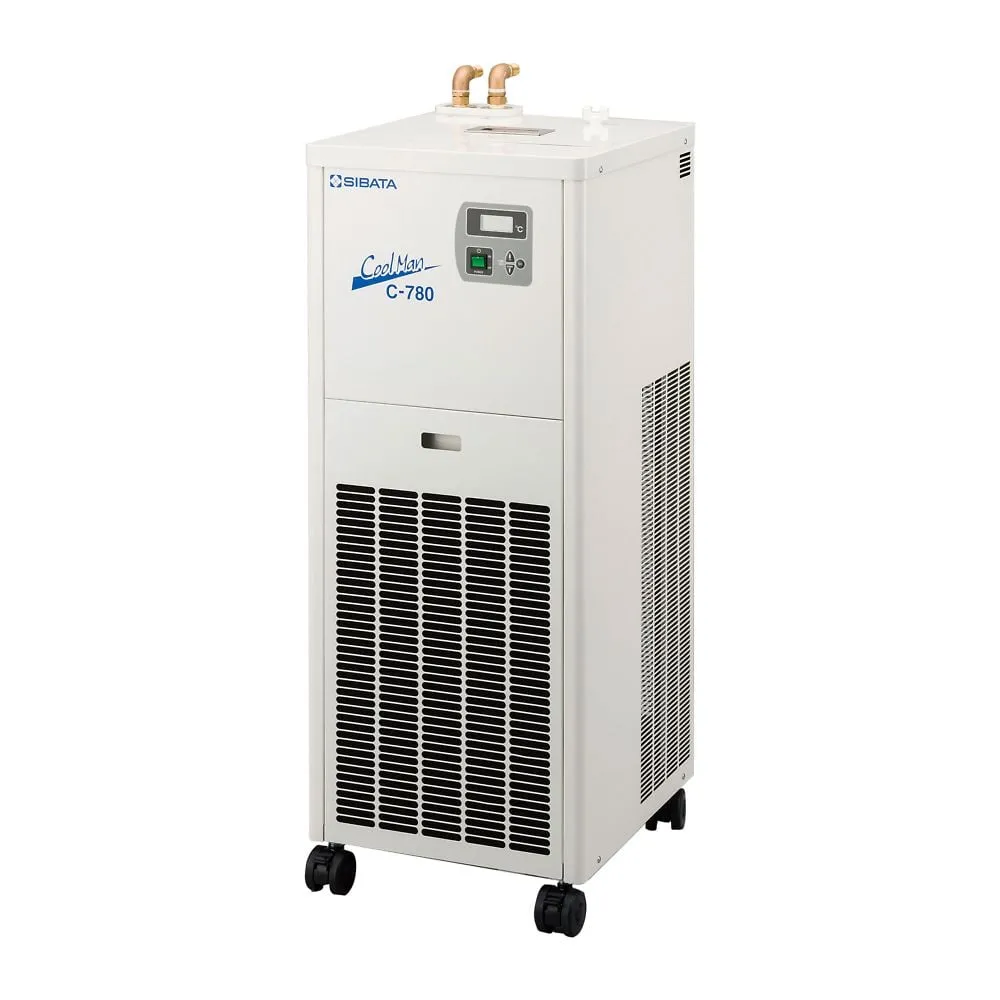

64-0836-06 Low Temperature Circulation water tank Coolman Type C-780 051140-780
Product Description
Product Model: 64-0836-06Product Brand: SIBATA SCIENTIF […]
Contact Us
Product Details
Product Model: 64-0836-06
Product Brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
Features
- It is a low-temperature circulating water tank that can cool the circulating water in the water tank and supply it to the outside.
- It has a high cooling capacity of 3100 W (Water temperature 20°C, room temperature 20°C, at 50 Hz) and can be connected to various equipment such as medium to large rotary evaporators and Soxhlet extractors.
- With an external circulation flow control valve, it is possible to adjust the amount of liquid delivered without providing bypass piping.
Spec
- temperature settings range: -20 ° C to + 20 ° C
- Coolant: R -407 C (1.0 kg)
- Cooling ability: 3100 W (Water temperature 20 ° C, R.T. 20 ° C, 50Hz) 2500 W (Water temperature 10 ° C, R.T. 20 ° C, 50Hz)
- lifting height maximum (C -780 Body) : 10/14 m (50/60 Hz, flow rate 0 L/min Time)
- Maximum lifting height (pumps non-consolidated): 10.8/14.8 m or More (50/60 Hz, flow rate 0 L/min Time)
- maximum flow rate (C -780 Body) : 18/21 L/min (50/60 Hz without load)
- maximum flow rate (pumps non-consolidated) : 25 L/min (50Hz lifting height 9.0 m/60Hz lifting height 12.5 m)
- Dimensions : 420 ( W ) x 470 ( D ) x 1060 ( H ) mm (Not including projections)
- Weight: approx. 72 kg
- power supply 200 VAC, Three-phase 50/60 Hz 10/11 A
- Code number: 051140 -780
