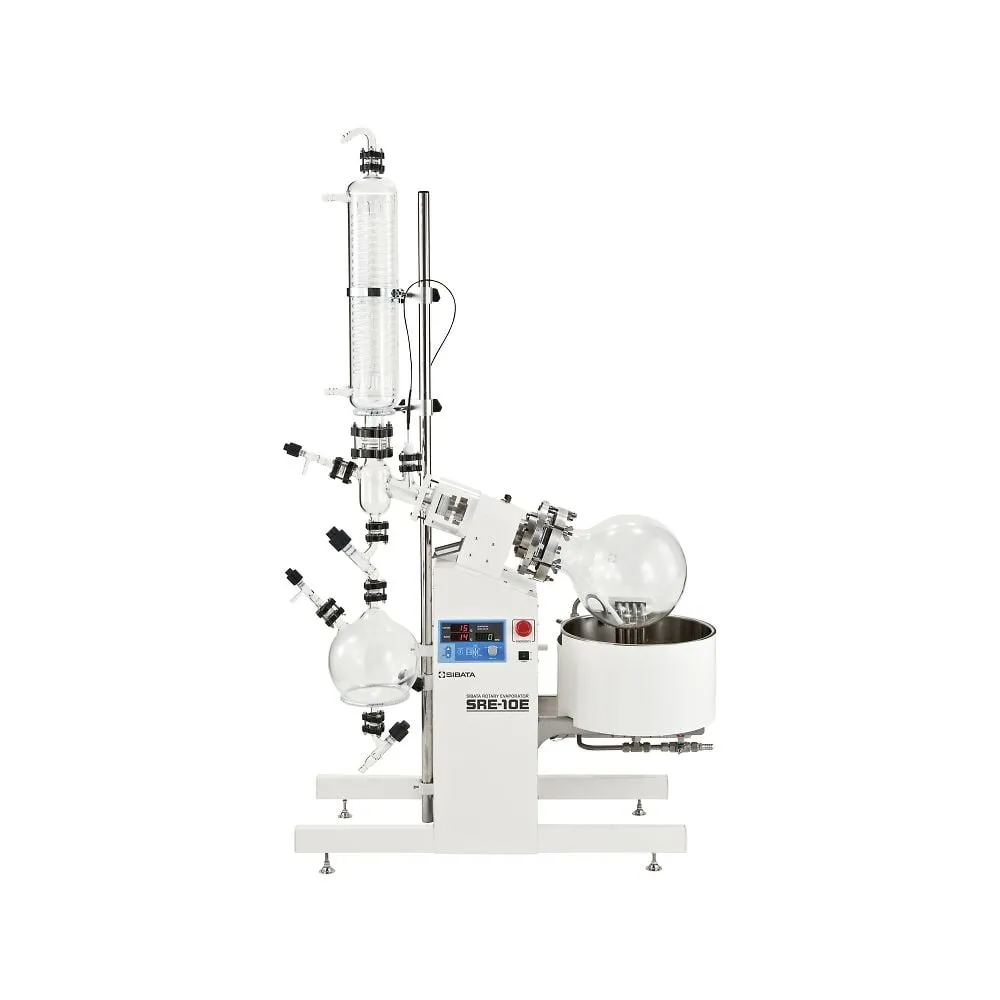

64-0836-04 Medium Size Rotary Evaporator SRE -10 E 050340-100
Product Description
Product Model: 64-0836-04Product Brand: SIBATA SCIENTIF […]
Contact Us
Product Details
Product Model: 64-0836-04
Product Brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
Features
- It is a high-*** model that takes into consideration the *** of various types of concentration, distillation, evaporation, and drying, from laboratory classes of testing, research, and inspection to production fields.
- With the adoption of an electric jack, up and down movement of the bus has become easy with only button operation.
- A stable vacuum is obtained by using a mechanical seal with a long history.
- The LED digital display panel makes it easier to see.
- It has an emergency stop button just in case.
- In the event of an abnormality such as a power failure ca***d by a safety device, there is a function to stop operation safely.
Spec
- Temperature Adjustment Range: R.T. + 5 ° C, to 180 ° C (Water and Oil common ***)
- capacity : φ 360 mm x 180 mm 18 L SUS304
- Bus Lifting: Electric Stroke 238 mm
- Rotating Part (rotational speed range): 10 to 150 rpm
- Vacuum attainment level of glass part: 2 hPa
- Rotary Flask: 10 L (Neck inner diameter φ 100 mm)
- Receiving Flask: 5 L, with Drain Valve
- Display: 7-segment LED digital display (rotation speed, bus temperature, steam temperature)
- Operating Temperature Range: 5 to 35 ° C
- Operating Humidity Range: 10 to 90% rh (No condensation)
- power supply: 200 VAC to 240 V (single phase) 3.2 kVA power supply Cable 3 m
- Dimensions (main body only) : 1040 ( W ) x 520 ( D ) x 1700 ( H ) mm (Not including glass parts)
- Mass: about 90 kg (Not including glass parts)
- Code Number: 050340 -100
