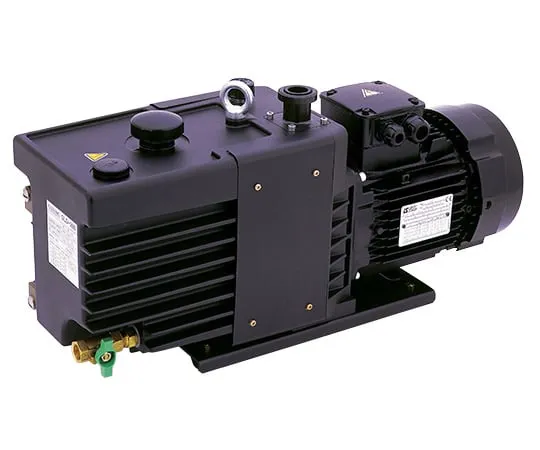

63-5379-65 Oil-Sealed Rotary Vacuum Pump
Product Description
Product Model: 63-5379-65Product Brand: ULVAC, Inc. Fea […]
Contact Us
Product Details
Product Model: 63-5379-65
Product Brand: ULVAC, Inc.
Features
- Low noise and low vibration
- Two-stage exhaust system with lower pressure than single-stage exhaust system (better vacuum)
- Backflow prevention mechanism prevents oil from flowing back into the vacuum chamber when stopped due to power failure
- Stable exhaust speed with forced oil supply mechanism
- Can operate from atmospheric pressure
- Knock-pin connection of internal components and flange motor for easy maintenance
Spec
- Execution 60Hz: 50Hz/280 L/min, exhaust speed/336 L/min
- Reaching pressure: G.V. Closed/0.67 Pa, G.V. Open/6.7 Pa
- Motor ***d: 3 phase, 200 -240 V/380 -460 V, 750 W, 4P
- Total Load Current (A)
- 50Hz : 3.6 (200 V) , 3.7 (220 V) , 4.0 (230 V) , 4.2 (240 V) , 2.1 (400 V) , 2.3 (380 V) , 2.4 (415 V)
- 60Hz : 3.3 (200 V) , 3.2 (220 V) , 3.2 (230 V) , 3.2 (240 V) , 1.9 (380 V) , 1.9 (400 V) , 1.9 (440 V) , 2.0 (460 V)
- Amount of oil: 700 to 1,100 mL
- Oil ***d: R -7
- Mass: 34.5 kg
- Intake pipe diameter: KF -25
- Operating ambient temperature range: 7 to 40 ° C.
- Max Dimensions: 181 (W) x 536 (L) x 269 (H)
- RoHS Compliant: Yes
- Power supply: AC100V
- *The ultimate pressure is measured by the Pirani gauge.
- *Power supply plugs and power cord are not included.
- Country of origin: China
