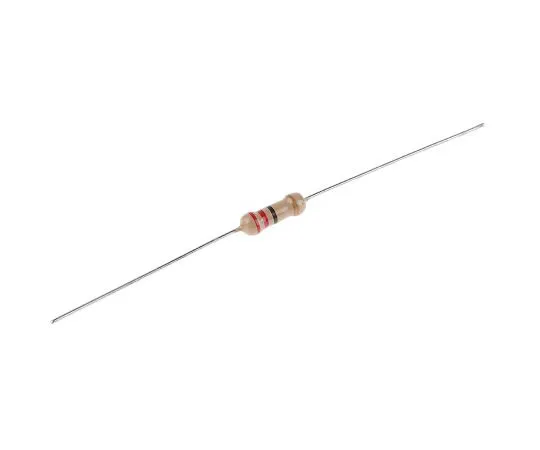

63-4566-65 Carbon Coated Resistor CFR50 Series 22 ohm 0.5 W +/- 5% CFR50J22R
model:
63-4566-65
brand:
TE Connectivity
Product Description
Product Model: 63-4566-65Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4566-65
Product Brand: TE Connectivity
Features
- The 0.5 W-CFR 50 series and the Axial
- CFR series are very high quality carbon film resistors that *** a ceramic core with a high alumina content. It has a high power output relative to its size, and is by far the most popular carbon-coated product.
- The CFR series supports 5 power ratings from 1 Ω to 10 MΩ.
- Smallest case size (CFR16) with a maximum power rating of 0.25 W
- These components offer low cost and high reliability, ideal for most types of circuitry, audio, communications, metering and computer applications
Spec
- Quantity: 1 bag (10 pieces)
- Resistance: 22 ohms
- Rated power: 0.5 W
- Tolerance: +/- 5%
- Technology: Carbon film
- Series: CFR 50
- Case Style: Formal
- Temperature factor: -1200 -- > 0 ppm/C
- End style: Axial
- Dimensions: 3 (Dia.) x 9 mm
- Length: 9 mm
- Diameter: 3 mm
- Minimum temperature coefficient: -1200 ppm/deg.
- RoHS compliance status: Compliance
- Securities Code: 132 - 090
