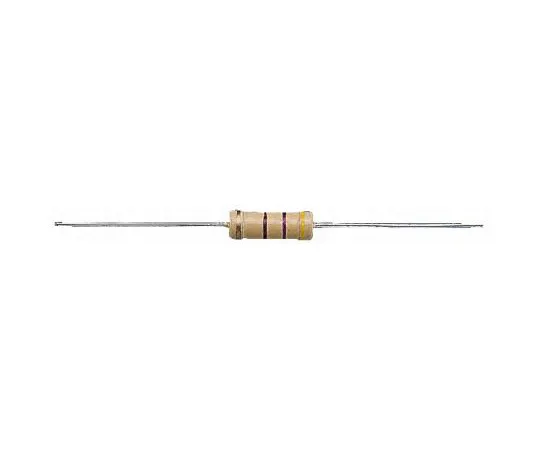

63-4566-56 Carbon Coated Resistor CFR200 Series 33 Ohm 2 W +/- 5% CFR200J33R
model:
63-4566-56
brand:
TE Connectivity
Product Description
Product Model: 63-4566-56Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4566-56
Product Brand: TE Connectivity
Features
- The 2 W CFR200 series and the Axial
- CFR series are very high quality carbon film resistors that *** a ceramic core with a high alumina content. It has a high power output relative to its size, and is by far the most popular carbon-coated product.
- The CFR series supports 5 power ratings from 1 Ω to 10 MΩ.
- Smallest case size (CFR16) with a maximum power rating of 0.25 W
- These components offer low cost and high reliability, ideal for most types of circuitry, audio, communications, metering and computer applications
Spec
- Quantity: 1 bag (10 pieces)
- Resistance: 33 ohms
- Rated power: 2W
- Tolerance: +/- 5%
- Technology: Carbon film
- Series: CFR 200
- Case Style: Formal
- Temperature factor: -500 to -100 ppm/C
- End style: Axial
- Dimensions: 5.5 (Dia.) x 16 mm
- Length: 16 mm
- Diameter: 5.5 mm
- Minimum operating temperature: -55 degrees C
- RoHS compliance status: Compliance
- Securities Code: 131 -952
