Electronic/Electrical Parts and Controll Equipments

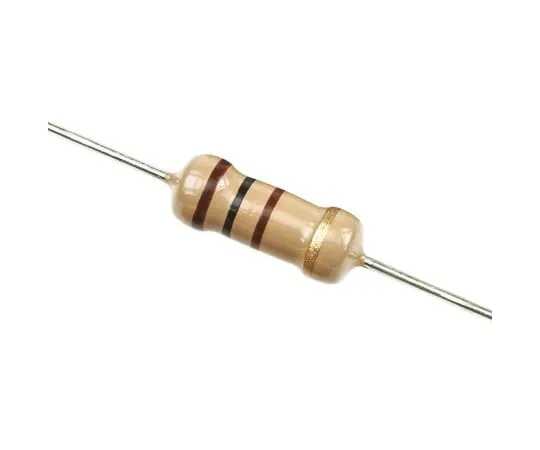

63-4566-39 Carbon Coated Resistor CFR100 Series 100 Ohm 1 W +/- 5% CFR100J100R
model:
63-4566-39
brand:
TE Connectivity
Product Description
Product Model: 63-4566-39Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4566-39
Product Brand: TE Connectivity
Features
- The 1 W CFR100 series and the Axial
- CFR series are very high quality carbon film resistors that *** a ceramic core with a high alumina content. It has a high power output relative to its size, and is by far the most popular carbon-coated product.
- The CFR series supports 5 power ratings from 1 Ω to 10 MΩ.
- Smallest case size (CFR16) with a maximum power rating of 0.25 W
- These components offer low cost and high reliability, ideal for most types of circuitry, audio, communications, metering and computer applications
Spec
- Quantity: 1 bag (10 pieces)
- Resistance: 100 ohms
- Rated power: 1W
- Tolerance: +/- 5%
- Technology: Carbon film
- Series: CFR 100
- Case Style: Formal
- Temperature factor: -500 to -100 ppm/C
- End style: Axial
- Dimensions: 5 (Dia.) x 12 mm
- Length: 12 mm
- Diameter: 5 mm
- Minimum temperature coefficient: -500 ppm/deg.
- RoHS compliance status: Compliance
- Securities Code: 131 -772
