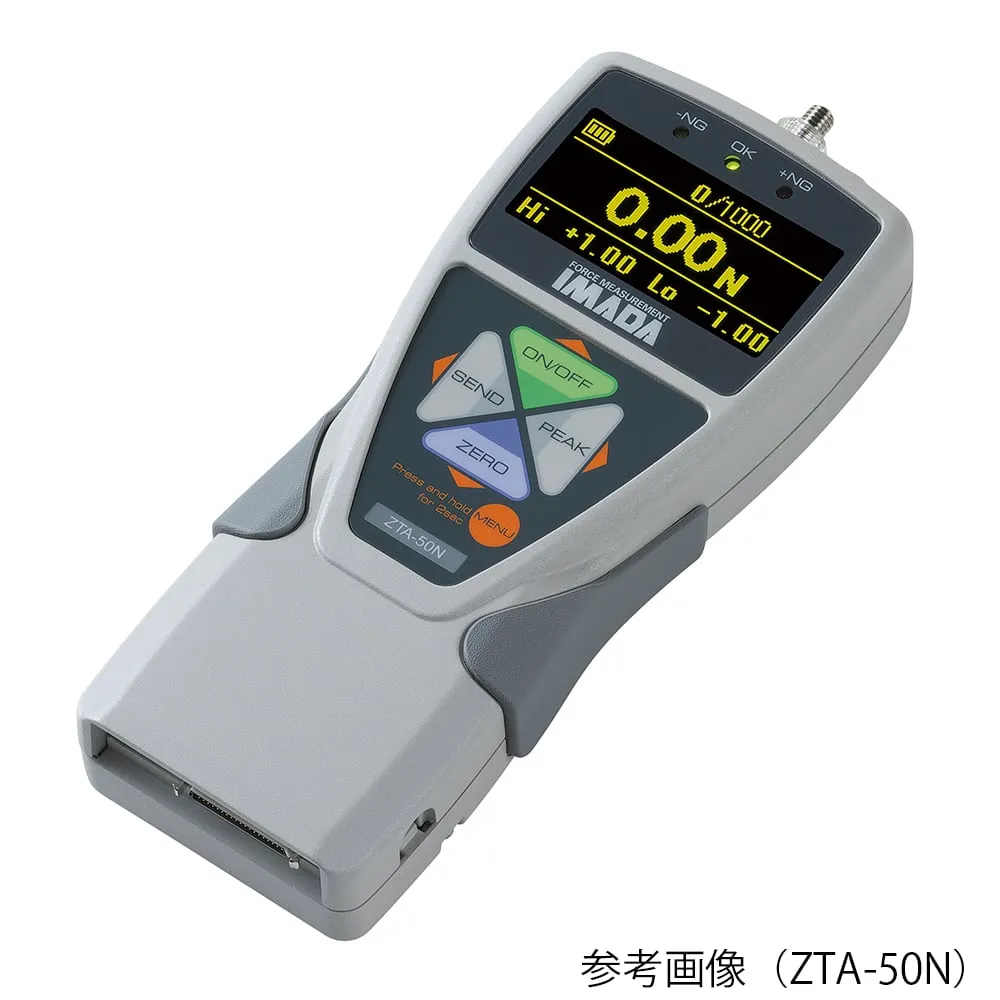

2-1431-53 Digital Force Gauge 1000 N ZTA-1000N
Product Description
Product Model: 2-1431-53Product Brand: IMADA CO., LTD. […]
Contact Us
Product Details
Product Model: 2-1431-53
Product Brand: IMADA CO., LTD.
Features
- With low ripple and low noise, each output can be indep***ently controlled.
- Allows upright/parallel tracking operation (CH1/CH2).
Spec
- Maximum load (N): 1000
- Minimum resolution: 1
- Number of pieces: 1
- Accuracy: +/- 0.2% FS +/- 1 digit
- Display: 4 signed digits
- Sampling: Up to 2000 times/second
- Output Functions: Common/USB (2.0, 3.0)/RS 232 C/2 VDC analog output (D/A)/Comparator 3 levels (-NG/OK/+ NG)/Overload warning, Sub-Comparator 2 levels (large/small decision output)/USB memory/Displacement
- Functions: Common/Multi-display (2-level up/down selective display), Peak hold (tension and compression), Internal memory (1000 data), Comparator (pass/fail judgment), Screen display inversion, Sign inversion, 0 clear timer, + NG alarm off timer (auto power off), Sensitivity setting, Time display, Setting lock, 1st 2nd peak detection, Peak load displacement detection, Displacement reset at specified load
- Size: 75 x 34 x 191 mm
- Power: Internal battery or 100 ~ 240 VAC (AC adapter included)
- Weight: approximately 490 g
- Accessories: Attachment 8 pieces (small hook, flat type, cone, A type, V type, connection rod, large hook and hook), USB memory adapter, USB cable, storage case, driver CD (with data capture software), AC adapter
