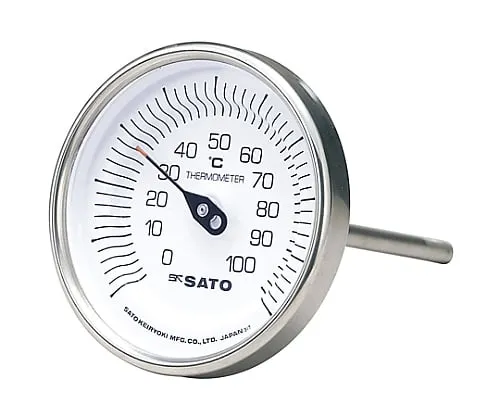

61-0065-82 Bimetal Thermometer -30 - 50℃ 60L BM-T-90S
Product Description
Product Model: 61-0065-82Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 61-0065-82
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- All the metal parts on the outer surface are made of SUS304, which is a robust industrial thermometer. The shape is T-type (backlash type)
- Since it ***s bimetal expansion, it is an eco-fri***ly product without power supply.
- When you place an order, please specify a range that is comfortable for the temperature to be ***d. (Example When using 100°C, specify 0~150°C.)
- * Be sure to *** a protective pipe (optional) in the following cases. If the material to be measured is high pressure (5 kg/cm or more) or corrosive (however, the material SUS304 may not be suitable for corrosion resistance due to the environment).
Spec
- Model number: 2010-10
- Measurement range: -30 - 50℃
- 1 scale: 1℃
- Dimension under screw: 60mm
- Case outer diameter: φ103
- Dial diameter: φ90
- Drip-proof
- Transparent plate material: Glass
- Temperature sensing element diameter: φ8
- Standard mounting screw: PT1/2
- Screw part withstanding pressure: 5Kgf/cm2
