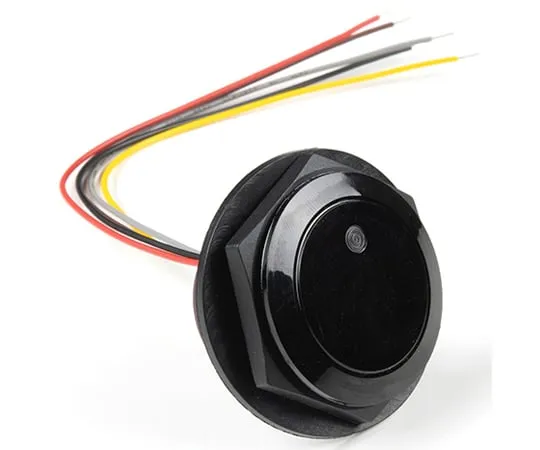

67-0398-05 infrared proximity non-contact button PRT-18582
Product Description
Product Model: 67-0398-05Product Brand: SparkFun Featur […]
Contact Us
Product Details
Product Model: 67-0398-05
Product Brand: SparkFun
Features
- Non-Contact button by infrared ray
- An infrared proximity contactless button with a microcontroller to handle interference and noise. Can be turned ON/OFF without touching the button, and can be ***d as an alternative to general push buttons. A red/blue status LED informs the ***r that they have touched. The 2 potentiometers on the back allow you to adjust the reading range, with a reading distance of 3~15 cm and a reading time of 0.5 to 20 seconds.
- Built-in microcontroller
- Two color status LEDs (Power On: Red, Near: Blue)
- Proximity range: 3~15 cm (default: 15 cm)
- Release time: 0.5 to 20 seconds (default: 0.5 seconds), or latch ON/OFF output
- Fire-proof/UV-proof polycarbonate enclosure
- Diameter: 39.7 mm
Spec
- Material: Fire proof and UV proof polycarbonate material
- Waterproof rating: IP65
- Power: 12 VDC/1 A
- Relay contact rating: 1 A@ 30VDC
- Current: 12 VDC
- Standby: 25 mA±5%, Operating: 37 mA±5%
- Operating temperature: -20°C to +75°C
- Life: 100,000 cycles (1 A/30VDC, 0.3 A/125VDC), 50 million cycles (Dry Contact)
