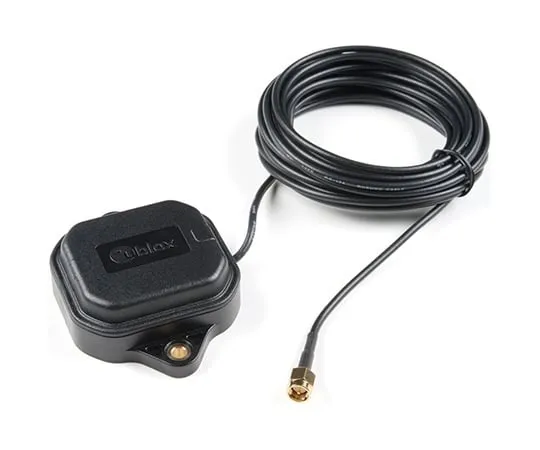

67-0372-23 Multi-Band Magnetic MountAntenna-5m GPS-15192
Product Description
Product Model: 67-0372-23Product Brand: SparkFun Featur […]
Contact Us
Product Details
Product Model: 67-0372-23
Product Brand: SparkFun
Features
- Description
- The ANN-MB-00 GNSS multiband antenna is extremely unique from other GNSS/GPS antennas in that it is designed to receive both the classic L1 GPS band and the newly launched(started in 2005)L2 GPS band. Additionally, the ANN-MB-00 from u-blox is extremely well built with both a magnetic base with mounting holes for additional anchoring for the harshest environments.
- Designed for the latest u-blox F9 platform--including the ZED-F9P module--it provides a fast, easy, and reliable multi-band antenna solution but can be ***d with any GPS/GNSS receiver that can benefit from the L1/L2 dual reception.
- This antenna supports GPS, GLONASS, Galileo, and BeiDou and includes a high-performance multi-band RHCP dual-feed patch antenna element, a built-in high-gain LNA with SAW pre-filtering, and a 5m SMA cable.
- Features
- Frequency:L1 Band:1559-1606MHz
- L2/L5 Band:1197-1249MHz
- Peak gain(over 15cm diameter ground plane):L1 Band:3.5dBic
- L2/L5 Band:0-2.0dBic
- VSWR:max. 2
- Bandwidth:min. 200MHz
- Impedance:50 Ohm
- Polarization RHCP
- Supports GPS, GLONASS, Galileo, and BeiDou
- 5m coaxial cable with SMA connector
- Magnetic base, fixed installation option(screw mount, 2×M4 screws)
- Dimensions:60.0mm×82.0mm×22.5mm
- Weight:175g(including cable)
