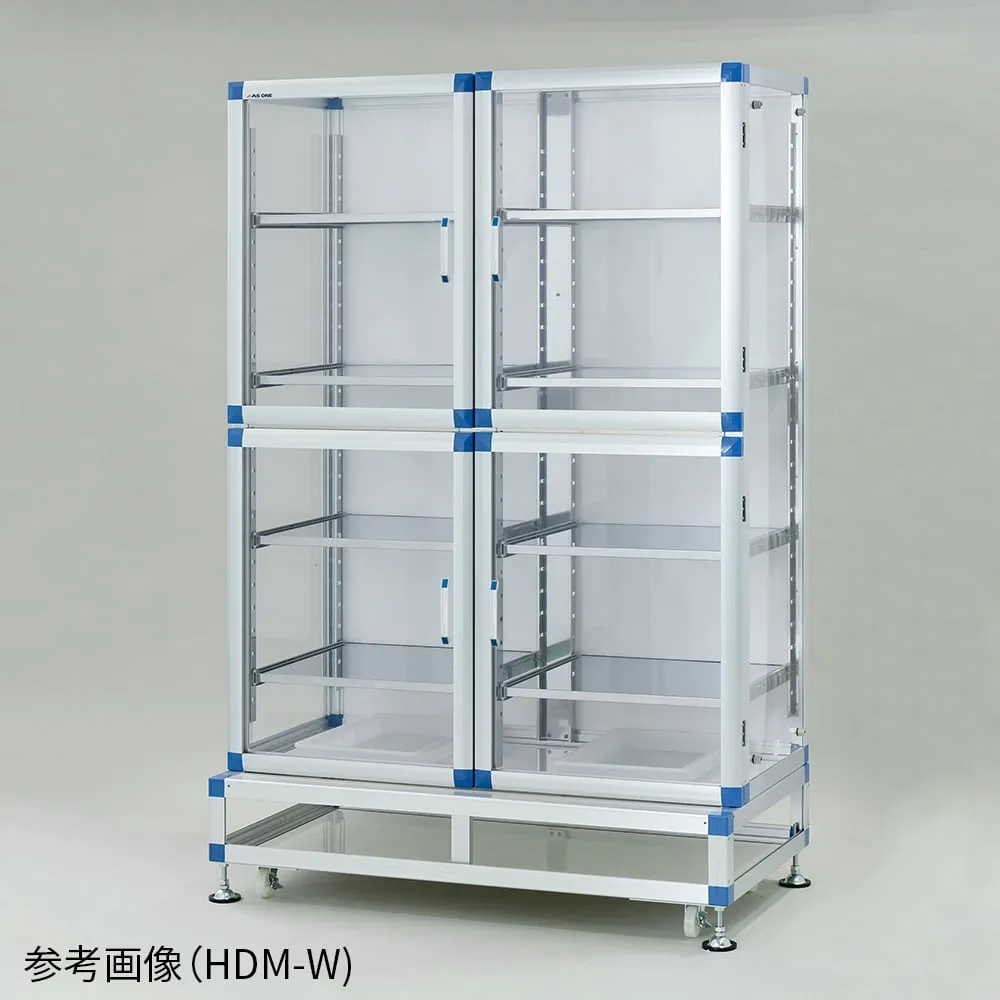

4-2390-01 Heavy Desiccators (Magnet packing door specification) 574 x 600 x 1765 mm HDM-S
Product Description
Product Model: 4-2390-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-2390-01
Product Brand: AS ONE Corporation
Features
- Magnet packing door makes it easy to open and close.
- A large capacity gas displacement desiccator.
- A grounding terminal is provided to provide grounding.
- Equipped with 4 female screw seats as standard so that various accessories such as flow meters and valves (sold separately) can be installed.
- Equipped as standard with a sliding load-bearing shelf board that can store large heavy items.
Spec
- external dimension (mm) : 574 x 600 x 1765
- inner size (mm) : 560 x 483 x 1486
- material : Body/PMMA (acrylic) , Frame/Aluminum Sash , Slide Rail/shelf board/SUS430
- Slide Width: 300 mm
- Total Load tolerance: Approximately 140 kg
- Weight: 35 kg
- shelf board Load tolerance Co., Ltd.: about 35 kg/sheet
- shelf board Dimensions : 470 x 460 mm
- Shelf Mounting pitch: 50 mm (40 mm interval)
- Caster: Φ 65, mm Nylon (With Stopper x 2 pieces)
- Valve mounting screws: Rc 1/4 x 4 pieces
- Accessory: Slide Rail Shelf x 4 pieces/Silica Gel Dish x 1 piece
- * Wooden packaging (Wooden frames, pallets, etc.) is ***d.
*This product might require extra fees.
