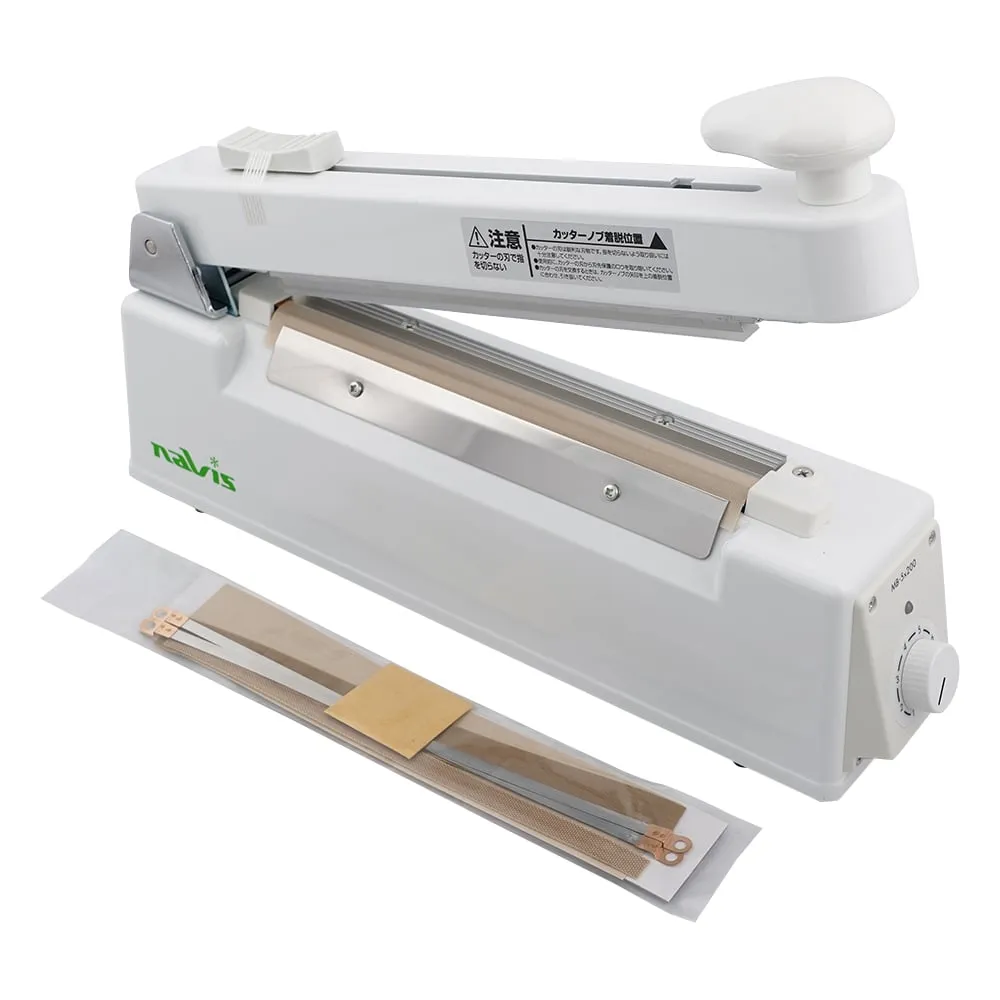

7-1330-01 White Sealer For Sterilization Bag (With Cutter) 5 x 200 MB-5x200
dissectiontoolsandsupplies

7-1330-01 White Sealer For Sterilization Bag (With Cutter) 5 x 200 MB-5x200

model: 7-1330-01
brand: NAVIS

Product Description

Product Model: 7-1330-01Product Brand: NAVIS Features S […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 7-1330-01
Product Brand: NAVIS

Features

  • Seal the sterile bag firmly with a width of 5 mm.
  • The seal can be made with the film surface of the sterile bag facing up.
  • * * Since the heater of this product is attached to the lower side, the film surface of the sterilized bag should be set to the lower side for stronger adhesion.
  • * Dep***ing on the sterilized bag ***d, it may not be possible to seal with the film surface set on the upper side, or the welding may become weak.
  • ★ When the film surface is set to the upper side and the welding is weak: (1) Set the film surface to the lower side. Or (2) set the energization time longer.
  • ★ If the film is too melted when the film surface is set to the lower side: (1) Set the film surface to the upper side. Or (2) set the energization time short.
  • It comes with a sliding cutter.

Spec

  • Model number: MB-5 x 200
  • Seal width x length (mm): 5 x 200
  • Body size (mm): 92 x 380 x 265
  • Sealer accessories: Heater x 2 pieces, Fluorocarbon resin sheet x 2 sheets, Fluorocarbon resin adhesive tape x 2 sheets, Cutter blade x 1 sheet
  • Sealing ability: PE (polyethylene)/to 0.6mm, PP (polypropylene)/to 0.4mm (MB-5 x 200), to 0.5mm (other)
  • Power source: AC100V 50/60Hz
  • Power consumption: MB-5 x 200/540W, MB-5 x 300/660W, MB-5 x 400/880W
  • Power cord length: 1.8m (2P type)
  • Weight: 4kg
