63-8135-10 STMicroelectronics SM6T36AY, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA SM6T36AY
model:
63-8135-10
brand:
STMicroelectronics
Product Description
Product Model: 63-8135-10Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-8135-10
Product Brand: STMicroelectronics
Features
- AEC-Q101. ISO 7637-2, ISO 10605. Automotive Transil™ TVS SMT 600W. The SM6TxxxAY Transil™ Transient Voltage Suppressor range has been designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. Qualified to AEC-Q101. Package: DO-214AA (SMB) RS Product Codes < 795-7297') 795-7297/ SM6T6V8AY Automotive 600W Unidirectional TVS, 6.8V < 795-7228') 795-7228/ SM6T6V8CAY Automotive 600W Bidirectional TVS, 6.8V < 795-7436') 795-7436/ SM6T7V5AY Automotive 600W Unidirectional TVS, 7.5V < 795-7275') 795-7275/ SM6T7V5CAY Automotive 600W Bidirectional TVS, 7.5V < 795-8549') 795-8549/ SM6T10AY Automotive 600W Unidirectional TVS, 10V < 795-7300') 795-7300/ SM6T10CAY Automotive 600W Bidirectional TVS, 10V < 795-7278') 795-7278/ SM6T12AY Automotive 600W Unidirectional TVS, 12V < 795-7329') 795-7329/ SM6T15AY Automotive 600W Unidirectional TVS, 15V < 795-7332') 795-7332/ SM6T15CAY Automotive 600W Bidirectional TVS, 15V < 795-8919') 795-8919/ SM6T18AY Automotive 600W Unidirectional TVS, 18V < 795-7483') 795-7483/ SM6T18CAY Automotive 600W Bidirectional TVS, 18V < 795-7439') 795-7439/ SM6T22AY Automotive 600W Unidirectional TVS, 22V < 795-7219') 795-7219/ SM6T22CAY Automotive 600W Bidirectional TVS, 22V < 795-7455') 795-7455/ SM6T24AY Automotive 600W Unidirectional TVS, 24V < 795-8820') 795-8820/ SM6T24CAY Automotive 600W Bidirectional TVS, 24V < 795-7499') 795-7499/ SM6T27AY Automotive 600W Unidirectional TVS, 27V < 795-7556') 795-7556/ SM6T30AY Automotive 600W Unidirectional TVS, 30V < 795-8877') 795-8877/ SM6T30CAY Automotive 600W Bidirectional TVS, 30V < 795-8928') 795-8928/ SM6T33AY Automotive 600W Unidirectional TVS, 33V < 795-8947') 795-8947/ SM6T33CAY Automotive 600W Bidirectional TVS, 33V < 795-8870') 795-8870/ SM6T36AY Automotive 600W Unidirectional TVS, 36V < 795-8599') 795-8599/ SM6T36CAY Automotive 600W Bidirectional TVS, 36V < 795-7502') 795-7502/ SM6T39AY Automotive 600W Unidirectional TVS, 39V < 795-8515') 795-8515/ SM6T39CAY Automotive 600W Bidirectional TVS, 39V < 795-8555') 795-8555/ SM6T42AY Automotive 600W Unidirectional TVS, 42V < 795-7559') 795-7559/ SM6T42CAY Automotive 600W Bidirectional TVS, 42V < 795-8546') 795-8546/ SM6T47AY Automotive 600W Unidirectional TVS, 47V < 795-7470') 795-7470/ SM6T47CAY Automotive 600W Bidirectional TVS, 47V < 795-7360') 795-7360/ SM6T56AY Automotive 600W Unidirectional TVS, 56V < 795-7335') 795-7335/ SM6T56CAY Automotive 600W Bidirectional TVS, 56V < 920-9155') 920-9155/ SM6T56CAY Automotive 600W Bidirectional TVS, 56V (Pack of 2500) < 795-7565') 795-7565/ SM6T68AY Automotive 600W Unidirectional TVS, 68V < 795-8864') 795-8864/ SM6T68CAY Automotive 600W Bidirectional TVS, 68V < 795-7372') 795-7372/ SM6T75AY Automotive 600W Unidirectional TVS, 75V < 795-7348') 795-7348/ SM6T82CAY Automotive 600W Bidirectional TVS, 82V
Spec
- Quantity:1set(2500pieces)
- Direction Type:Uni-Directional
- Maximum Clamping Voltage:64.3V
- Minimum Breakdown Voltage:34.2V
- Mounting Type:Surface Mount
- Package Type:DO-214AA (SMB)
- Maximum Reverse Stand-off Voltage:30.8V
- Pin Count:2
- Peak Pulse Power Dissipation:600W
- Maximum Peak Pulse Current:62A
- Number of Elements per Chip:1
- Minimum Operating Temperature:-55 °C
- Maximum Operating Temperature:+150 °C
- Automotive Standard:AEC-Q101
- CODE No.:168-7301
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

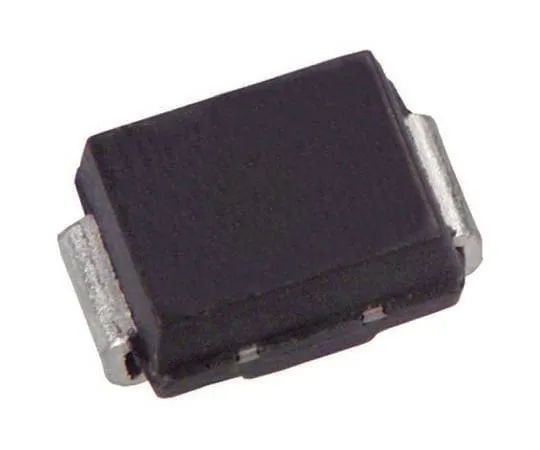

63-8120-45 STMicroelectronics SMBJ15A-TR, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA SMBJ15A-TR
