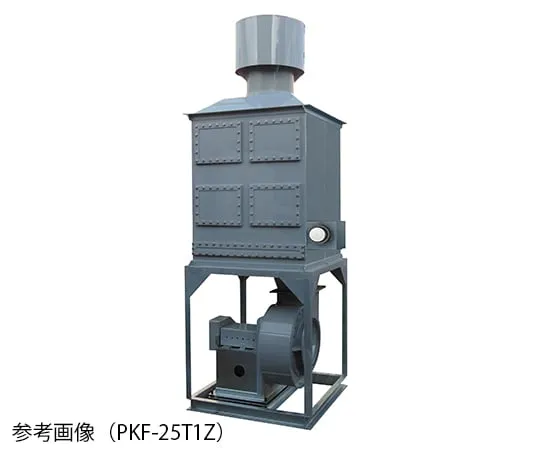

3-7889-01 Dry Scrubber (Outdoor type with built-in fan) 20 m3/min 600 x 600 x 2375mm PKF-25T1Z
model:
3-7889-01
category:
gasmonitors
Product Description
Product Model: 3-7889-01 Features A vertical dry scrubb […]
Contact Us
Product Details
Product Model: 3-7889-01
Features
- A vertical dry scrubber installed outdoors.
- An exhaust fan made of PVC with excellent corrosion resistance is built into the bottom of the scrubber to save installation space and ductwork.
- The exhaust fan motor is designed to conserve energy and reduce noise in consideration of the environment.
Spec
- Model: PKF -25 T1Z
- Organic
- main unit size (mm): 600 x 600 x 2375
- material : Main body/PVC (Plastic vinyl chloride ) , rack/steel (molten galvanizing)
- processing air volume (m3/min): 20
- Body static pressure (Pa): 400
- activated carbon filter
- Unit: 1 UC 25
- Activated charcoal Weight (kg): 20
- exhaust fan
- Type: No 200 T
- Motor (kW): 1.5
- Weight (kg): 200
- *Shipping, carrying-in, installation, assembly, etc. are required separately. Please contact us.
