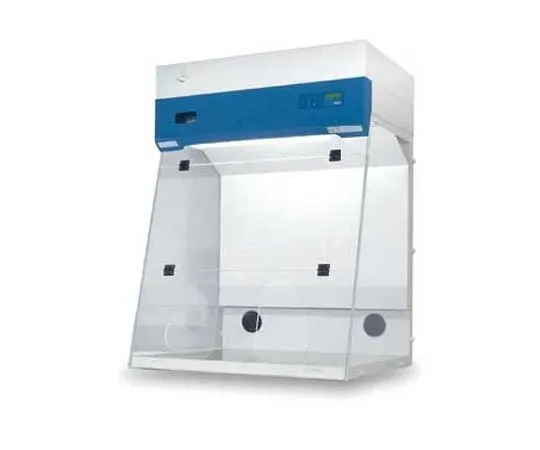

3-7421-01 Simplified ductless fume cabinet SPD -3 A7
gasmonitors

3-7421-01 Simplified ductless fume cabinet SPD -3 A7

model: 3-7421-01
brand: ESCO Company Ltd.
category: gasmonitors

Product Description

Product Model: 3-7421-01Product Brand: ESCO Company Ltd […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 3-7421-01
Product Brand: ESCO Company Ltd.

Features

  • This product is ideal when it is difficult to install a fume hood or when there is no equipment in the laboratory to *** low concentrations and trace amounts of organic solvents and toxic gases.
  • It has a certified containment capability. Certified by ASHRAE110-1995 (US) and BS7258 (UK) (SPD-4A7)
  • The ergonomic front oval opening allows you to reach each part of the work area when you insert your hand. It also protects workers from harmful substances.
  • The front window is a hinged panel that can be opened and closed in two stages to provide access to the lab equipment in the cabinet.
  • The front windows and sides are made of transparent acrylic, providing a nice view inside and a comfortable workspace.
  • There are two access ports on the back that allow you to pass the power cords for any device in the cabinet.
  • Utilizing our experience in conventional fume hoods, we have designed unique baffles to improve sealing and efficiently remove chemical gases from work areas.
  • There is a dent on the workbench, so there is no worry of spreading even if liquid is spilled.

Spec

  • Outer dimensions: 840 (W) x 700 (D) x 1125 (H) mm
  • Internal dimensions: 820 (W) x 651 (D) x 817 (H) mm
  • Air flow rate (at initial speed): 166 m 3/h
  • Inlet velocity: Initial setting: Average of 0.5 m/s measured at the level surface of the work opening/closing section
  • Activated carbon filter: 1 can be set (1 standard filter comes standard) (lineup of 8 types of filters)
  • Lighting intensity: 350 Lux or more at work surface level
  • Structure: Body and internal baffle system: 1.2 mm 16 gauge galvanized steel sheet white fired epoxy powder coating finish Front window: 6 mm acrylic resin Side: 9.5 mm acrylic resin Workbench: Stainless steel
  • Weight: 86 kg (filter included)
  • Power supply: 100 VAC 50/60 Hz
