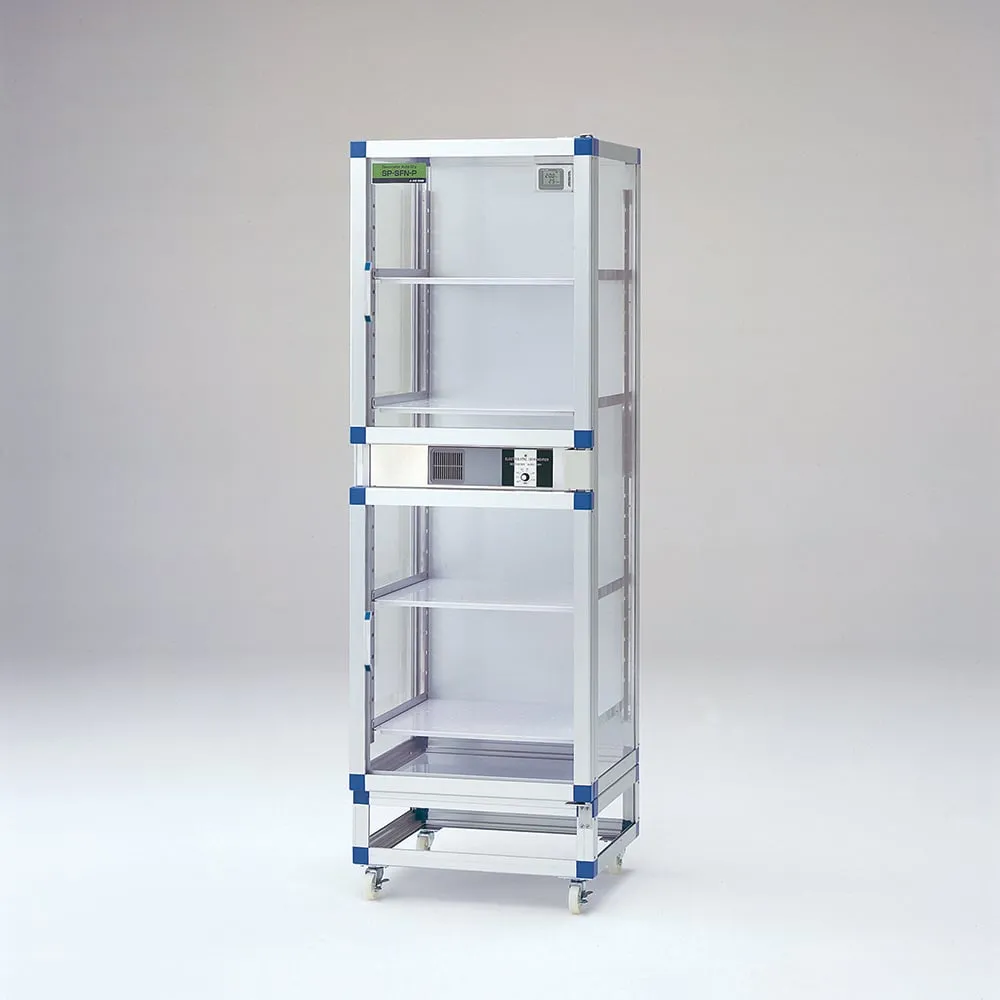

1-5503-41 Auto Dry Desiccator FN 574 x 524 x 1770mm Reinforced Plastic Shelf Board SP-SFN-P
Product Description
Product Model: 1-5503-41Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5503-41
Product Brand: AS ONE Corporation
Features
- Eliminates dead space in the desiccator, making it possible to *** the interior more effectively.
- A new door opening and closing mechanism eliminates dead space when opening and closing the door, allowing installation on the wall without any gaps.
- The new dehumidification unit has no drive and no source of sound or vibration, making it more durable.
- Moisture inside the desiccator is released directly to the outside in a gaseous state, so there are no water droplets (drains).
- Easy to move with casters.
- The humidity control is controlled (analog setting) by the front panel.
- Standard series with lightweight aluminum frame and clear resin panel.
- A new type of solid polymer electrolyte membrane (Rosal) is installed on the front panel to directly electrolyze and continuously remove moisture from the inside air, enabling stable dehumidification.
Spec
- Auto Dry Type
- Humidity setting range: 20 to 50 %RH
- Humidity control range: 20 %RH to room humidity (In environment ***d at the time of unload)
- Humidity control system: Automatic dial adjustment (early leaving humidity)
- material (Body / Frame): PMMA (acrylic) / aluminum
- Custer specification (front wheel 2 locations stopper): 65 mm PA nylon
- shelf board specifications: reinforced plastic
- shelf board Dimensions / Mounted pitch: 490 x 460 mm / 50 mm
- shelf board interval : 35 mm
- shelf board Load tolerance: about 10 kg / sheet
- power supply: AC100V 50 / 60Hz
- Average Power Consumption: 5W
- Maximum Power Consumption: 30 W
- The length of power cord: about 2m (3P Plug)
- Weight: 29 kg
- Accessories: shelf board x 4 pieces, high precision digital temperature humidity indicator (THI-HP)
- external dimension (mm): 574 x 524 x 1770
- inner size (mm): 560 x 483 x 1486
- Reinforced plastic shelf
- Model Number: SP-SFN-P
*This product might require extra fees.
