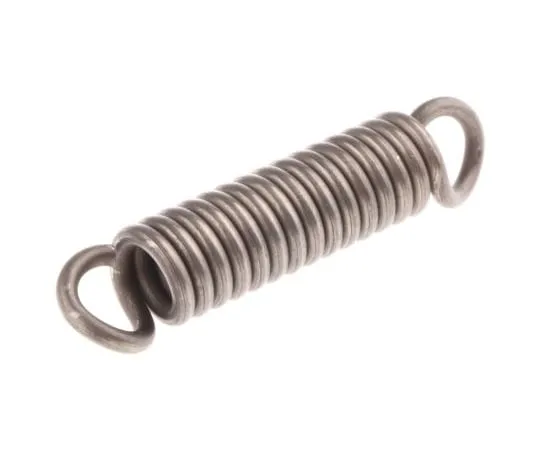

63-4563-96 RS PRO Steel Extension Spring, 48mm x 11mm 121-337
Product Description
Product Model: 63-4563-96Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4563-96
Product Brand: RS PRO
Features
- Materials to DIN17223 Class C or BS1408 CR3. Dimensions conform to DIN2097 Grade 2. Oiled finish. Music Wire Extension Springs. Manufactured from high tensile strength piano/music wire, with a right-hand (clockwise) helix and looped ***s. Features and Benefits. Attached at both ***s Springs absorb and store energy Create resistance to pulling force Initial tension manipulation can achieve individual requirements Wound to oppose extension. Applications:. Automotive interiors and exteriors Garage door assemblies Vise-grip pliers Carburetors Trampolines Washing devices Farm machinery
Spec
- Quantity：1bag(10pieces)
- Material : Steel
- Free Length : 48mm
- Maximum Ext***ed Length : 58.10mm
- Outside Diameter : 11mm
- Wire Diameter : 2.2mm
- Initial Tension : 259N
- Spring Rate : 21.9N/mm
- CODE No.:121-337
