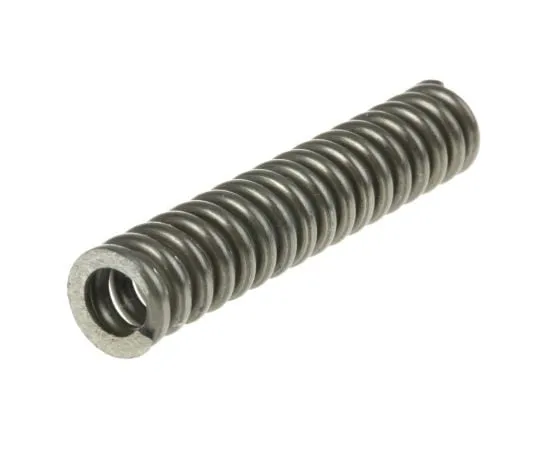

63-4563-91 RS PRO Steel Alloy Compression Spring, 56.8mm x 11mm, 22.56N/mm 121-309
Electronic/Electrical Parts and Controll Equipments

63-4563-91 RS PRO Steel Alloy Compression Spring, 56.8mm x 11mm, 22.56N/mm 121-309

model: 63-4563-91
brand: RS PRO

Product Description

Product Model: 63-4563-91Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4563-91
Product Brand: RS PRO

Features

  • The load at minimum working length is the load required to compress the spring to that length. All dimensions and forces to conform to DIN 2095 (grade 2). Music Wire Compression Springs. Wire diameter ***s up to 0.8mm are squared and unground Wire diameter ***s 1.00mm and over are squared and ground Manufactured with a right hand helix

Spec

  • Quantity:1bag(10pieces)
  • Outside Diameter : 11mm
  • Wire Diameter : 2.2mm
  • Free Length : 56.8mm
  • Minimum Working Length : 41.9mm
  • Load at Minimum Working Length : 337.35N
  • Material : Steel Alloy
  • Spring Rate : 22.56N/mm
  • Ends : Closed (Square)/Ground
  • CODE No.:121-309
