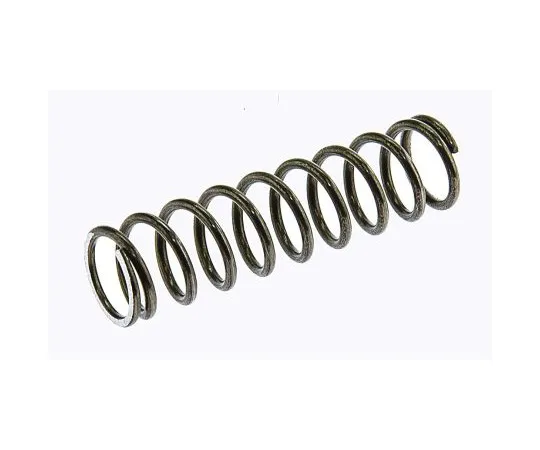

63-4563-77 RS PRO Steel Alloy Compression Spring, 53.5mm x 14.1mm, 4.04N/mm 121-220
Product Description
Product Model: 63-4563-77Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4563-77
Product Brand: RS PRO
Features
- The load at minimum working length is the load required to compress the spring to that length. All dimensions and forces to conform to DIN 2095 (grade 2). Music Wire Compression Springs. Wire diameter ***s up to 0.8mm are squared and unground Wire diameter ***s 1.00mm and over are squared and ground Manufactured with a right hand helix
Spec
- Quantity：1bag(10pieces)
- Outside Diameter : 14.1mm
- Wire Diameter : 1.6mm
- Free Length : 53.5mm
- Minimum Working Length : 20.1mm
- Load at Minimum Working Length : 135.33N
- Material : Steel Alloy
- Spring Rate : 4.04N/mm
- Ends : Closed (Square)/Ground
- CODE No.:121-220
