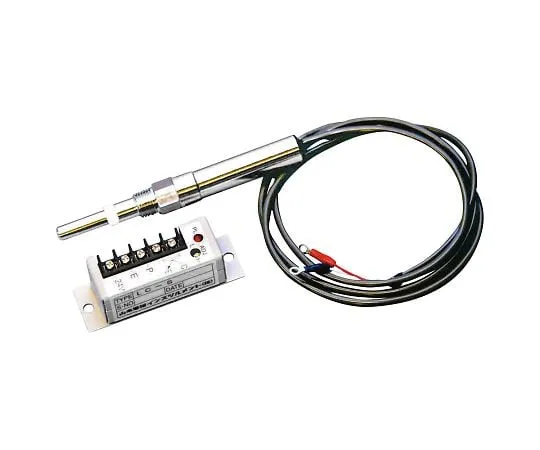

4-1409-01 Electrostatic capacity Type Level Switch (non-explosion-proof type) with power supply Part
Product Description
Product Model: 4-1409-01Product Brand: Y.E.I Features S […]
Contact Us
Product Details
Product Model: 4-1409-01
Product Brand: Y.E.I
Features
- Small, easy to handle and easy to maintain.
- 2-wire type with easy wiring.
Spec
- connections: PT- 1/4 B screws
- Connected Dimensions: L -40 mm (10 -6 -24) Detect Φ8 mm
- Sensor material: SUS316L
- Sensor Unit Size: Φ 16 (thickest part) x 122 mm
- Detection electrode part size: Φ8 × 24 mm
- Sensor/power supply Cable: 1 m Included
- insulation : Duracon (POM) Φ 10 mm
- Seal O-ring: Fluororubber
- Input power supply: DC24V
- Output: NPN open collector
- Weight cookies: about 100 g
