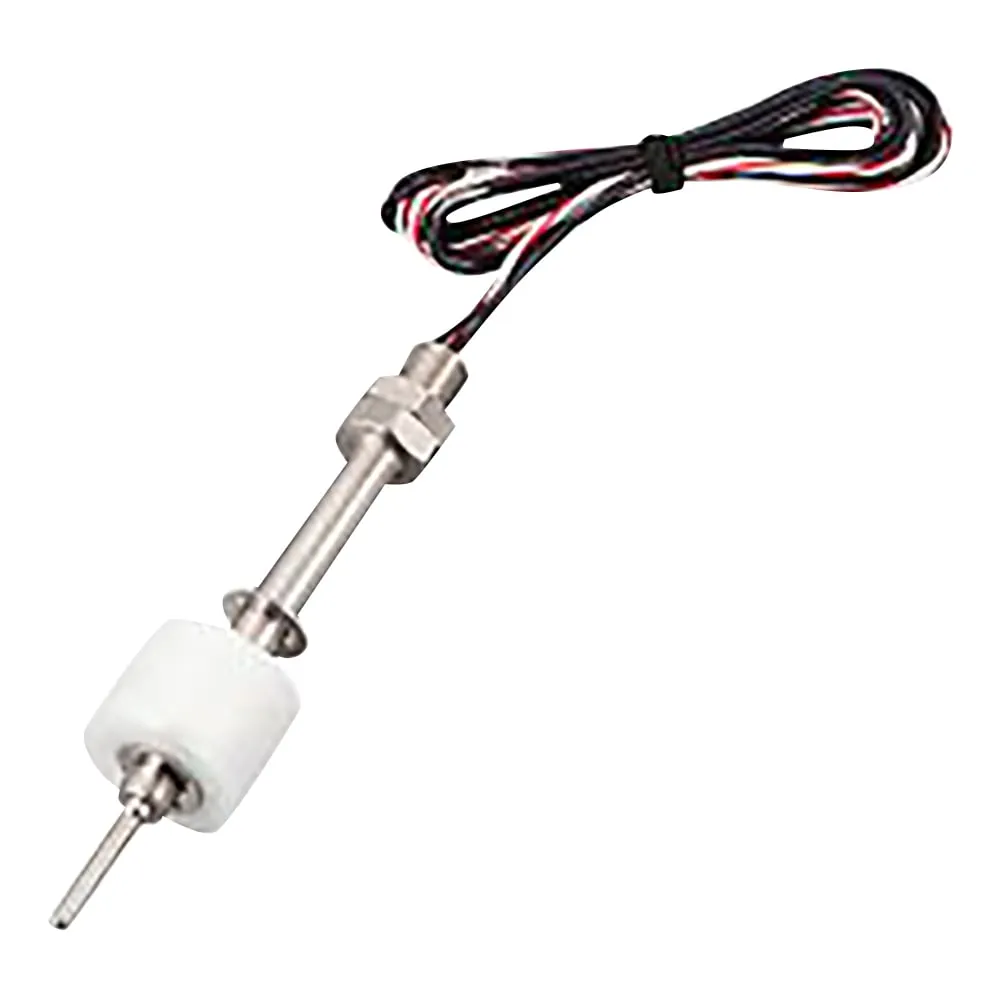

4-1391-01 Float Switch (With Temperature Sensor) 100 mm YFT-4-100
model:
4-1391-01
category:
toner
Product Description
Product Model: 4-1391-01 Features The float switch and […]
Contact Us
Product Details
Product Model: 4-1391-01
Features
- The float switch and temperature measuring resistor (Pt 100 Ω) are integrated to save space for installation.
- The optional holder Assy can be ***d to adjust the height and fix the product to containers of various thicknesses (~ 30 mm).
- The float is reversible, so it can be ***d in either asc***ing or desc***ing mode.
Spec
- Detection position (When the rising is ON): 49 mm from the mounting part (± 3 mm)
- Total length : 100 mm
- Stem Length: 75 mm
- Stem Diameter: Φ8 mm
- Flow Diameter: Φ 25 mm
- Tip Temperature Measuring Part Diameter: Φ 3.2 mm
- Lead Wire Length: 500 mm
- material : SUS304
- Float material: PP foam
- Liquid: Water, liquid medicine, oil
- Operating Temperature Range: -10 to + 90 ° C
- Maximum open and close Voltage: 240 VAC, 200 VDC
- Maximum open and close Current: 0.5 A AC/DC
- Maximum open and close capacity: 50 VA AC/DC
- Contact resistance: 350 mΩ or less
- Temperature Element: Pt 100 Ω (Class B)
- Protected grade – IP 67
