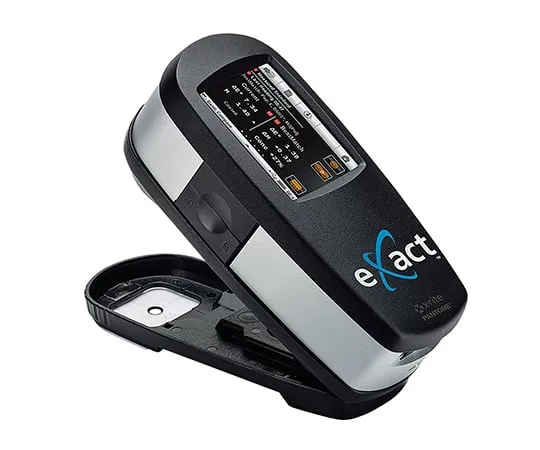

3-7637-04 Portable spectral density and colorimeter eXact Basic NGHXRN20J
Product Description
Product Model: 3-7637-04Product Brand: Videojet X-Rite […]
Contact Us
Product Details
Product Model: 3-7637-04
Product Brand: Videojet X-Rite
Features
- It supports ISO standards M0, M1, M2 and M3.
- In addition to common measurement items, Standard can display color difference and write reflectance data.
- In addition to the standard measurement items, the Advanced can measure paper index, metamerism, coloring power (relative/absolute), hiding power and reflectance graphs.
Spec
- Type: Basic
- Common measurement item: CMYK Density, Spot (wavelength) Density, Total Density, Net spot area fraction, dot gain
- Measurement Diameter: 2.0, 4.0 mm
- Spectroscopic System: DRS (dynamic rotational sampling)
- Wavelength range: 400 to 700 nm (10 nm interval)
- Optical Geometric Conditions: 45 °/0 ° Annular Arrangement Lighting ISO 5 -4: 2009 (E) Compliant
- Light source: Gas-filled tungsten lamp, UV LED
- Measurement conditions: ISO 13655 compliant M0, M1, M2, M3 (M0, 2 and 3 are measured simultaneously.)
- Measurement time: 1 second or less
- Size: 78 x 180 x 76 mm
- power supply: AC100 to 240 V 50/60 Hz
- Weight cookies: 700 g
- *We also have Φ2, Φ4 mm models. Please contact us.
