63-8099-58 Vishay SMBJ24CA-E3/5B, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA SMBJ24CA-E3/5B
Product Description
Product Model: 63-8099-58Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-8099-58
Product Brand: Vishay
Features
- TRANSZORB® Transient Voltage Suppressors SMT Bidirectional 600W, Vishay Semiconductor. Low profile DO-214AA (SMBJ) package Excellent clamping capability Very fast response time Low resistance with incremental surge
Spec
- Quantity:1set(3200pieces)
- Direction Type:Bi-Directional
- Maximum Clamping Voltage:38.9V
- Minimum Breakdown Voltage:26.7V
- Mounting Type:Surface Mount
- Package Type:DO-214AA (SMB)
- Maximum Reverse Stand-off Voltage:24V
- Pin Count:2
- Peak Pulse Power Dissipation:600W
- Maximum Peak Pulse Current:15.4A
- Number of Elements per Chip:1
- Minimum Operating Temperature:-55 °C
- Maximum Operating Temperature:+150 °C
- Width:3.94mm
- CODE No.:165-2269
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-8152-22 Male C14 IEC Filter Panel Mount 5 x 20mm,Faston,Rated At 6A,250 V ac Operating Frequency 50 → 400Hz FN 393 6/05-11
model: 63-8152-22
brand: Schaffner
Electronic/Electrical Parts and Controll Equipments
63-7789-20 10kΩ Through Hole Trimmer Potentiometer 0.25W Top Adjust Bourns 3266 Series 3262W-1-103LF
model: 63-7789-20
brand: Bourns
Electronic/Electrical Parts and Controll Equipments

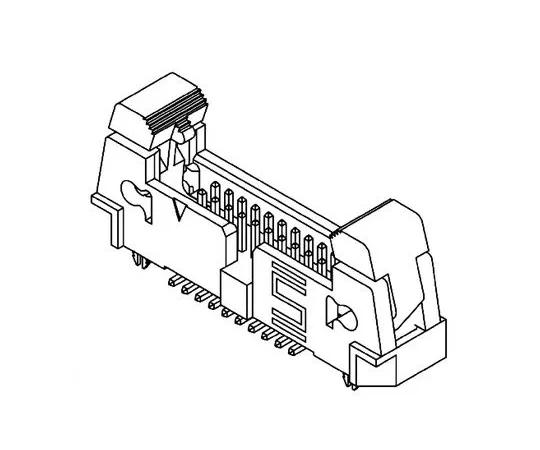

64-0590-13 Samtec EHT, 10 Way, 2 Row, Straight PCB Header EHT-105-01-S-D-SM-LC
