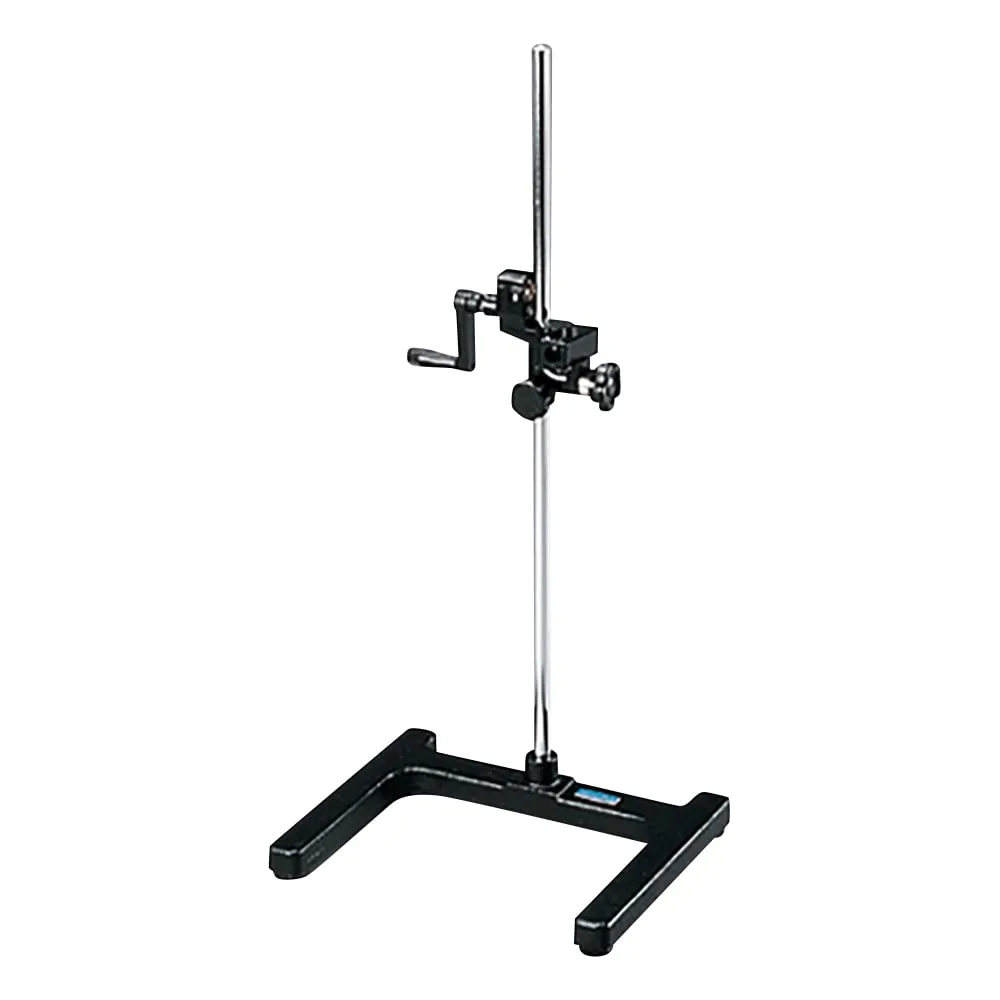

6-132-11 Adjustable Stand Type ANB
Product Description
Product Model: 6-132-11Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 6-132-11
Product Brand: AS ONE Corporation
Features
- The height can be easily adjusted (approximately 7 mm per turn) by turning the handle.
- Since it is a gear mechanism, fine adjustment is possible.
- The head mounting part can rotate 360°, so you can freely adjust the angle.
Spec
- Material: Base / cast iron (black paint finish), shaft / stainless (SUS304)
- Gear upper and lower Range: 400 mm
- Mountable shaft diameter: φ 16 mm
- Shaft size: φ 16 x 700 mm
- Base inner size: 260 x 190 mm
- Load tolerance: 3 kg
- Weight: 6.5 kg
- Type number: ANB type
- Head mount: Angle adjustable
- Exterior Dimensions (mm): 330 x 270
- * Cross clamp (1-315-02) for agitator is available, but it is not available
- * Please contact strut Nagaimo special order as well.
