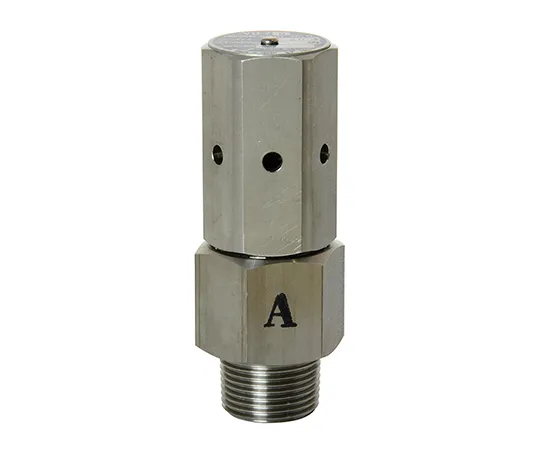

64-3837-72 SUS Vacuum Passage Valve steam/Air 1.0 MPa VB-7S-15A
Product Description
Product Model: 64-3837-72Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3837-72
Product Brand: Yoshitake Inc.
Features
- Adjusting the degree of vacuum to prevent accidents ca***d by negative pressure
- Stable operation without the occurrence of chattering hunting phenomenon
- Small size and light weight
- No risk of corrosion
Spec
- Specifications: Made of SUS
- Type: Vacuum Relief Valve
- Type: Vacuum Relief Valve
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam, Air
- Adjustment Pressure Range: (A) -0.5 to -21 kPa (B) -21 to -48 kPa (C) -48 to -81 kPa * Please specify one of the settings when ordering.
- Maximum temperature: 200 deg.
- Connection Method: JIS R
- Body: SUS
- valve body: SCS
- Valve seat: SUS
