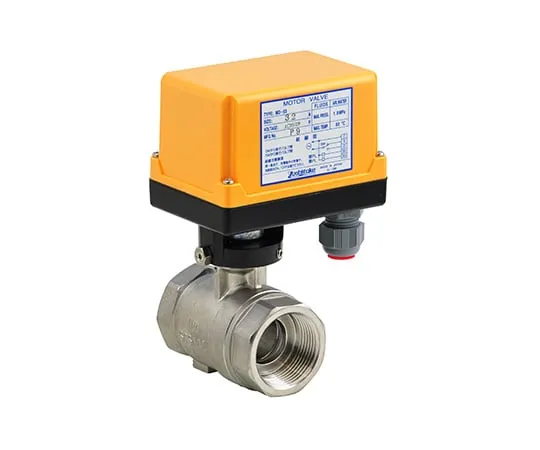

64-3835-73 SCS/SUS Electric Two-Way Valve Screwed/Ball Type/ON/OFF MD-53-15A
Product Description
Product Model: 64-3835-73Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3835-73
Product Brand: Yoshitake Inc.
Features
- Outdoor rainproof structure (JIS C0920 IP64)
- Built-in thermal protector provides excellent durability without motor burnout
- Fast and accurate start/stop operation
- Manual operation possible
- Open/close indicator lamp circuit included
- Built-in space heater for dew condensation prevention
Spec
- Specifications: Ball Type/ON-OFF
- Type: motorized valves
- Type: Two-way valve
- Type: Electric two-way valve
- Nominal Diameter: Listed after the model number
- Applicable fluids: Hot or cold water, Air
- Applicable Pressure Range: 0 to 1.0 MPa
- Applicable Temperature: -15 to 80 ° C (nonfreezing)
- rated voltage: AC100/110 V, 50/60 Hz or AC200/220 V, 50/60 Hz
- Operation method: ON/OFF
- open and close time: about 4.5 seconds to: 16 seconds
- Connection Method: JIS Rc
- Body: SCS
- Valve Body: SUS
- Valve Seat: PTFE (Fluorine Plastic)
Related product recommendations
You may also be interested in the following products
automaticdiluter
![2-797-27-01 [Cut Product] Naflon ®PTFE Tube (Millimeter Size) 10 x 11φ Length 1 m TOMBONo.9003](https://www.jgauge.com/wp-content/uploads/2025/05/418fadbdc1aa84da7683da014a5952db.webp)
automaticdiluter

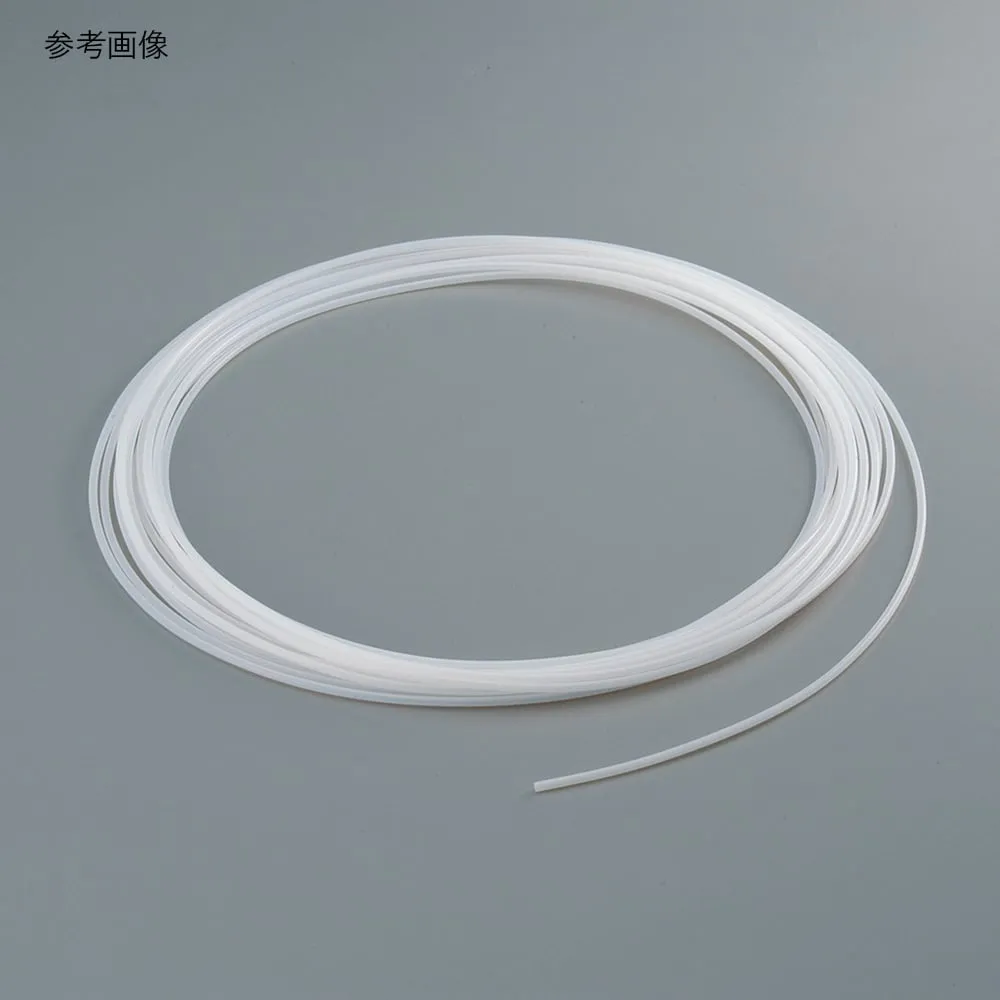

2-797-27-01 [Cut Product] Naflon ®PTFE Tube (Millimeter Size) 10 x 11φ Length 1 m TOMBONo.9003
