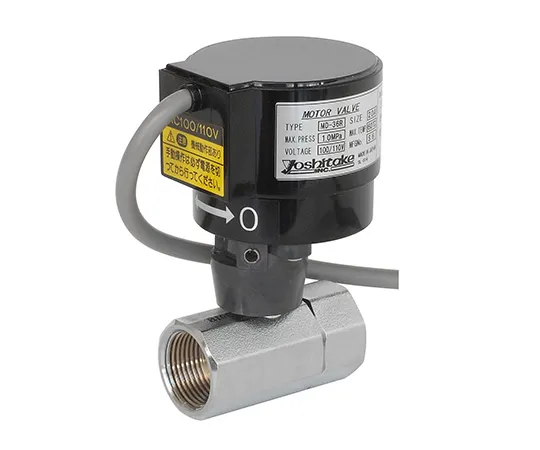

64-3835-70 C 3771 Electric Valve Small Ball Type On-Off Valve MD-36R-15A
Product Description
Product Model: 64-3835-70Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3835-70
Product Brand: Yoshitake Inc.
Features
- Use of a timer type improves durability without burning the motor
- Fast and accurate start and stop operation
- Manual operation possible
- Outdoor rainproof structure (JIS C0920 IP64)
Spec
- Specifications: Small Ball Type On-Off Valve
- Type: motorized valves
- Type: Two-way valve
- Nominal Diameter: Listed after the model number
- Fluid: chilled or hot water, air
- Applied Pressure: 0 to 1.0 MPa
- Applicable Temperature: -10 to 80 ° C (nonfreezing)
- rated voltage: AC100/110 V, 50/60 Hz Shared AC200/220 V, 50/60 Hz Shared
- Operation method: ON/OFF
- open and close time: about 6 to 8 seconds
- connections: JIS Rc
- Body: C 3771
- Valve body: C 3771 (HCr Plating)
- Seat: PTFE (Fluorine Plastic)
