64-3834-56 FC/SUS Primary Pressure Regulating Valve Flange/Micropressure Gas GD-4R-20A
Product Description
Product Model: 64-3834-56Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3834-56
Product Brand: Yoshitake Inc.
Features
- Primary Pressure Regulator Valve Used as Safety Device for Fine Pressure Adjustment of Air, Gas, etc.
- Effective Pressure Receiving Area of Diaphragm is Large and Accuracy against Set Pressure is Effective
- No external leakage due to lack of ground part

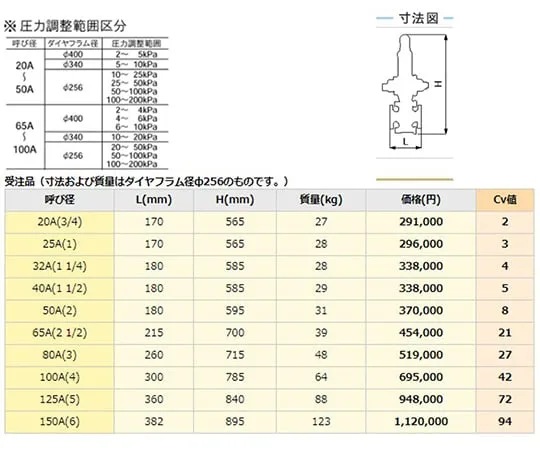

Spec
- Specifications: For Fine Pressure Air
- Type: primary pressure regulator
- Format: Linear
- Nominal Diameter: Listed after the model number
- Applicable fluids: Air, other non-hazardous fluids
- Pressure adjustment range: 2 to 200 kPa
- Maximum temperature: 80 deg.
- Connection Method: JIS 10 KFF
- Body: FC
- Valve Body/Valve Seat: SUS
- diaphragm: NBR
- Valve Rod: SUS
