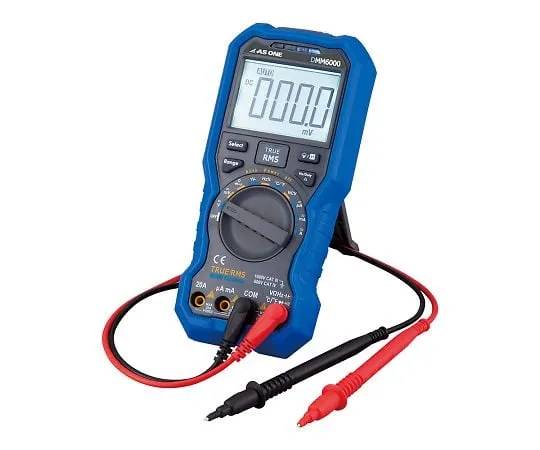

Spec

• Display: 3 5/6 digits
• Count: 6000
• measuring range
• DC Voltage: 60.00 mV/600.0 mV/6.000 V/60.00 V/600.0 V/1000 V
• AC Voltage: 600.0 mV/6.000 V/60.00 V/600.0 V/750 V
• DC Current: 60.00 uA/600.0 uA/60.00 mA/600.0 mA/20.00 A
• AC Current: 60.00 uA/600.0 uA/60.00 mA/600.0 mA/20.00 A
• Resistance: 600.0 Ω, 6.000 kΩ, 60.00 kΩ, 600.0 kΩ, 6.000 mΩ, 60.00 mΩ
• Capacitor capacity: 60.00 nF/600.0 nF/6.000 uF/60.00 uF/600.0 uF/6.000 mF/60.00 mF
• Frequency: 9.999 Hz/99.99 Hz/999.9 Hz/9.999 kHz/99.99 kHz/999.9 kHz/9.999 mHz
• Duty ratio: 0.1 to 99.9% (Typical value: Vrms = 1 V, f = 1 kHz)/0.1 to 99.9% (> 1kHz)
• Temperature: -50 to + 400 ° C
• Features: Flashlight, Backlight, Diode Test, Auto Power Off, Data Hold, Low Battery Display, Auto Range
• Safety standards: CAT04 600 V, CAT03 1000 V
• power supply : 9V battery x 1 piece (For testing)
• Size: 89 x 190 x 56 mm
• Weight cookies: 360 g
• Accessories: Test lead, K thermocouple
• resolution
• DC Voltage: 0.01 mV/1 mV/1 V
• AC voltage: 0.1 mV/1 mV/1 V
• DC Current: 0.1 uA/0.01 mA/0.01 A
• AC Current: 0.1 uA/0.01 mA/0.01 A
• Resistance: 0.1 Ω/0.01 MΩ
• Capacitor capacity: 0.01 nF/0.1 uF
• Frequency: 0.001 Hz
• Duty ratio: 0.10%
• Temperature: 1 ° C
• accuracy
• DC Voltage : ± (0.5% ± 2 digit)/± (0.5% ± 2 digit)/± (0.8% ± 2 digit)
• AC Voltage: ± (0.8% ± 2 digit)/± (0.8% ± 2 digit)/± (1% ± 3 digit)
• DC Current : ± (0.8% ± 2 digit)/± (0.8% ± 2 digit)/± (1.2% ± 3 digit)
• AC Current: ± (0.8% ± 2 digit)/± (0.8% ± 2 digit)/± (1.2% ± 3 digit)
• Resistance: ± (0.8% ± 2 digit)/± (2% ± 3 digit)
• Capacitor capacity: ± (2.5% ± 3 digit)/± (3% ± 5 digit)
• Frequency: ± (0.8% ± 2 digit)
• Duty ratio: ± (1.2% ± 3 digit)/± (2.5% ± 5 digit)
• Temperature: ± (2.5% ± 3 digit)/± (4.5% ± 5 digit)
