Spec

• processing air volume (m3/min): 10 to 35
• Size (mm): 2145 x 850 x 2510

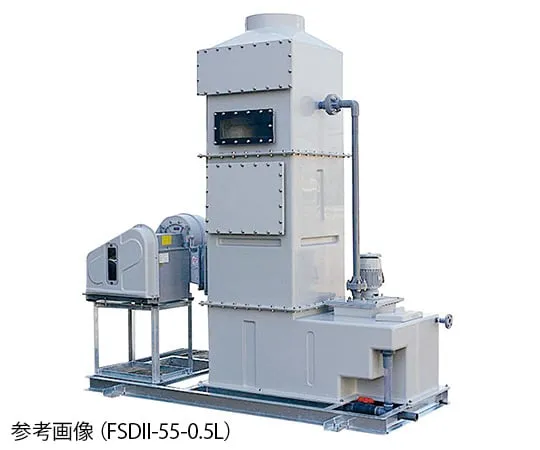

• Method: Wet scrubber made of FRP (fiber-reinforced plastic)
• System configuration: vertical scrubber (Integrated circulation tank type), exhaust fan, circulating pumps, common base
• material : Frame/Molded FRP Plastic , Filler/PP (Polypropylene) , DEMISTER/PVdC , Fan/Injection Molded FRPP (or molded FRP) , pumps/PVC (Plastic vinyl chloride ) , Common Base/SS 400 + Zn Plating , bolt nut/Stainless Steel (SUS304)
• Motor: Fully enclosed external fan, outdoor
• FRP color: Main unit/Munsell N -7, Fan/Munsell N -7 (moulded FRPP), 10 GY 6/2 (molded FRP)
• Suction capacity: Max 60 ° C
• Standard accessories: Water supply nozzle (20 A 10 K PVC), drain (40 A PVC), chemical anchor bolt, nut (SUS304)
• exhaust fan specification
• Type: 100 NKSII-RB
• Power (kW): 1.5
• Static pressure (Pa): 750
• Circulating pumps specification
• Type: 25 V03
• Water (L/min): 55
• Power (kW): 0.4
• lifting height (m): 8
• Circulation tank capacity (L): 240
• New water supply volume (L/min): 3
• External static pressure (Pa): 450
• Product mass (kg): 430
• Operation mass (kg): 1100
• *Operation mass is the maximum value (Drain pan full condition by rainwater).
• *Control switchboards are not included. Please contact us separately.
