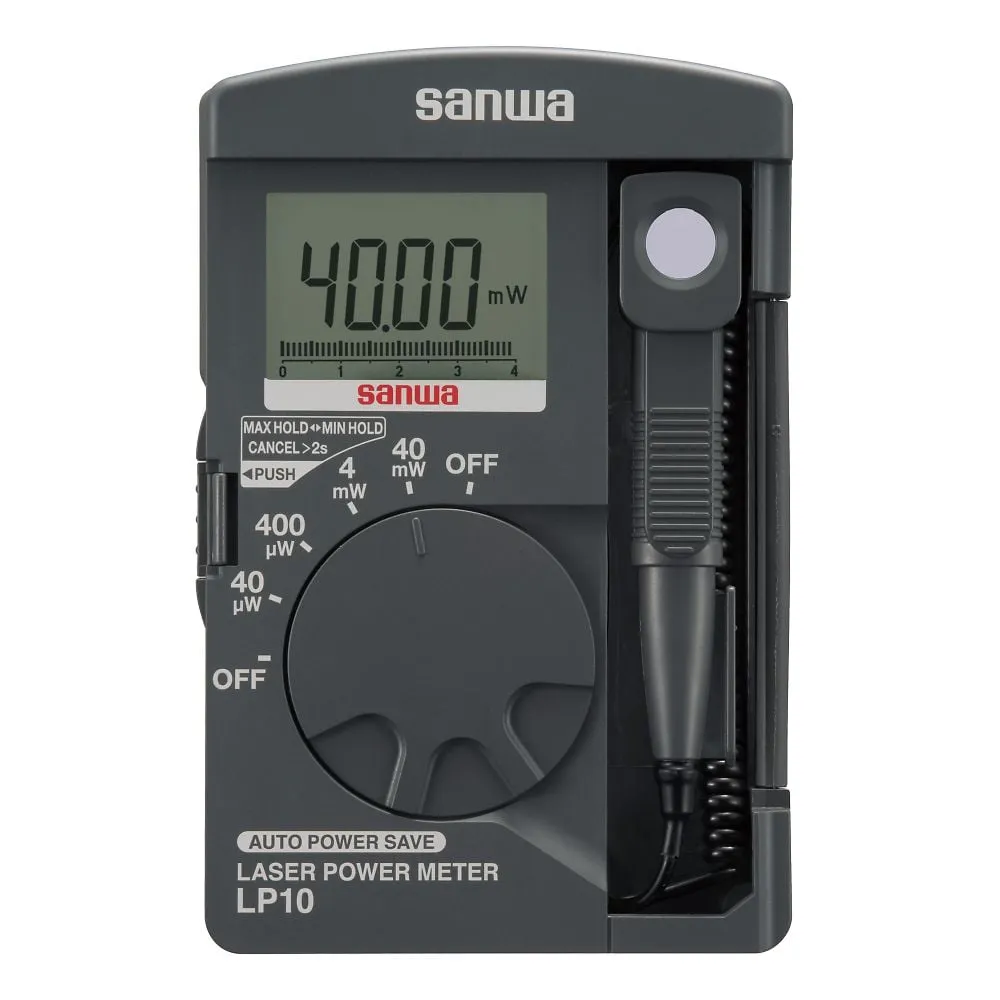

1-9684-11 Laser power meter LP10
Product Description
Product Model: 1-9684-11Product Brand: SANWA ELECTRIC I […]
Contact Us
Product Details
Product Model: 1-9684-11
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- Laser power can be measured from 0.01uW to 40.39 mW.
- The light-receiving surface ***s a diffusion sheet to suppress the return light.
- Small enough to fit in a chest pocket.
Spec
- Direct reading wavelength specification: 633 nm
- Wavelength indication: Standard wavelength
- Size (mm): 76 x 17 x 117
- Accuracy: ± 5% (1 mW: 4 mW Range at 633 nm)
- Photodetector: Si photodiode (Φ9 mm)
- Measurement Range: 40.39 uW/403.9 uW/4.039 mW/40.39 mW
- Direct Reading Calibration Wavelength: 633 nm (He-Ne laser) Standard Type (For other wavelengths, convert using representative correction factor)
- Sampling: Numeric part/about 3 times/second, Bar graph part/about 30 times/second
- Display: Numeric part/4039 counts, bar graph part/41 segments
- power supply : LR 44 (Button battery) * 2 pieces (Sold separately)
- Cord Length: 500 mm
- Function: Minimum/Maximum value hold, ・ Auto power save (After about 15 minutes)
- *Direct reading calibration wavelength can be specified within the specified wavelength range (400 to 1100 nm) (charge). Please consult us.
- *General calibration is also possible. Please consult us.
