Spec

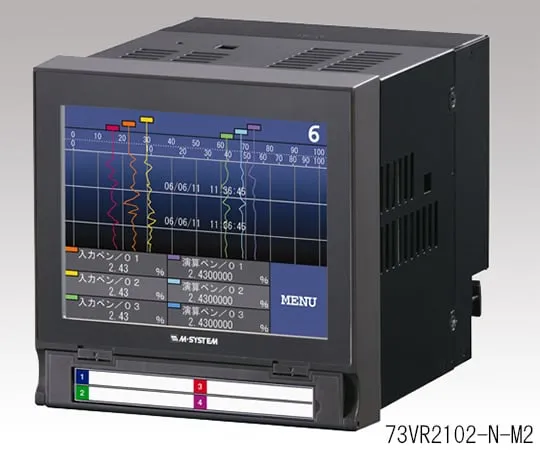

• Model number: 73VR2102-N-M2
• Input points: 2
• Size: 151.5 x 172 x 151.5mm
• Input type: Analog signal/DC voltage, thermocouple, resistance thermometer, Digital signal/trigger input (1 point)
• Recording cycle: 0.1, 0.5, 1, 2, 5, 10 seconds, 1 minute, 10 minutes (for voltage input)
• Ethernet communication: 10BASE-T/100BASE-TX (automatic switching), IEEE802 (10BASE-T), IEEE802.3 (100BASE-TX) standards compliance
• Supply AC power: Allowable voltage range/85 - 264VAC, 47 - 66Hz, 100VAC approximately 25VA, 240VAC approximately 35VA
• Protection grade: IP65 compliance
• With alarm function
• With calculation function
• *When saving data, CF card is required separately.
